Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

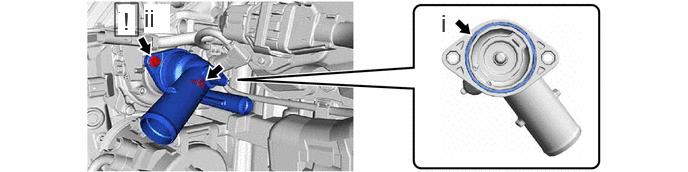

    1. GTY1076484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new gasket to the water inlet with thermostat sub-assembly.

        HINT:

        Be sure to clean the contact surfaces.

      2. Using an 8 mm socket wrench, install the water inlet with thermostat sub-assembly with the 2 bolts.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. CONNECT NO. 7 WATER BY-PASS HOSE
    1. GTY1077148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 15°
      *c 90° (Tabs of Clip Installation Area) *d Upper Side of Vehicle
      *e Front Side of Vehicle *f 1 mm (0.0394 in.) or higher
      1. Connect the No. 7 water by-pass hose to the water inlet with thermostat sub-assembly and slide the clip to secure it.
        NOTE:

        Make sure that the tabs of the clip are within the area shown in the illustration.

      2. Connect the water inlet with thermostat sub-assembly connector.
  3. CONNECT NO. 2 RADIATOR HOSE
    Refer to PROCEDURE - Step 35
  4. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [11/2021 - ]

  5. INSTALL GENERATOR ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  6. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  7. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  8. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 73

  9. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH
  10. INSTALL FRONT FENDER FRONT SPLASH SHIELD LH
