Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LOWER RADIATOR SUPPORT
  2. INSTALL RADIATOR SUPPORT CUSHION
  3. INSTALL RADIATOR ASSEMBLY

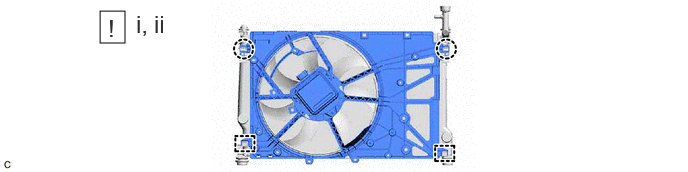

    1. GTY1076481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 guides.
      2. Engage the 2 claws to install the fan with motor assembly to the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when installing the fan with motor assembly.

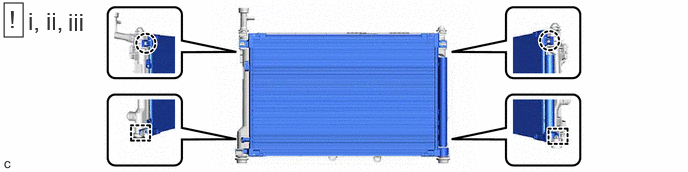

    2. GTY1076878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the radiator assembly with the fan with motor assembly to the vehicle body.
        NOTE:

        Do not apply excessive force to the cooler condenser assembly or pipe when installing the radiator assembly with the fan with motor assembly.

      2. Engage the 2 guides.
      3. Engage the 2 claws to install the cooler condenser assembly to the radiator assembly.
        NOTE:

        Make sure not to damage the cooler condenser assembly or radiator assembly when installing the cooler condenser assembly.

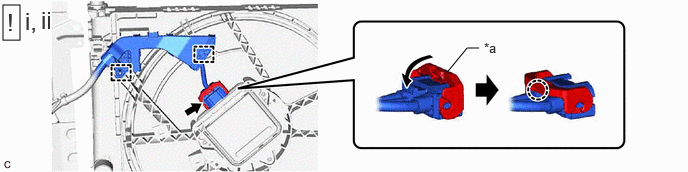

    3. GTY1077047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever - -
      1. Engage the 2 clamps to connect the wire harness to the fan with motor assembly.
      2. Connect the cooling fan motor connector and push down the lock lever to engage the claw as shown in the illustration.
        NOTE:
        • When connecting the cooling fan motor connector, make sure that the connecting parts of the cooling fan motor connector are free of dirt, water or other foreign matter.
        • Be sure to securely connect the cooling fan motor connector.
  4. CONNECT NO. 2 RADIATOR HOSE

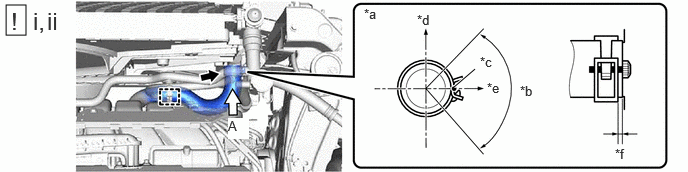

    1. GTY1078262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 2 radiator hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 2 radiator hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
      2. Engage the clamp to connect the No. 2 radiator hose to the fan with motor assembly.
  5. CONNECT NO. 1 RADIATOR HOSE

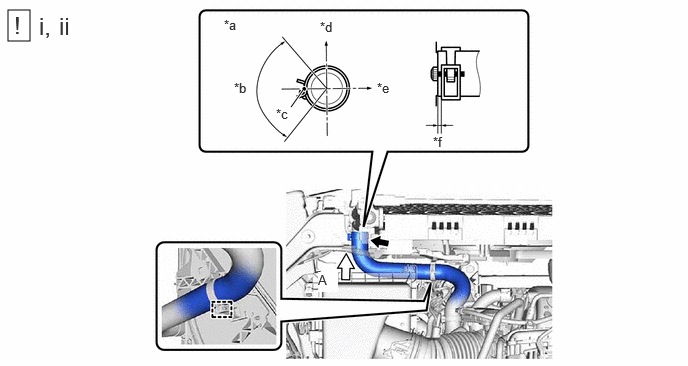

    1. GTY1078289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Right Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 1 radiator hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 radiator hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
      2. Engage the clamp to connect the No. 1 radiator hose to the fan with motor assembly.
  6. CONNECT NO. 6 WATER BY-PASS HOSE
  7. CONNECT NO. 5 WATER BY-PASS HOSE

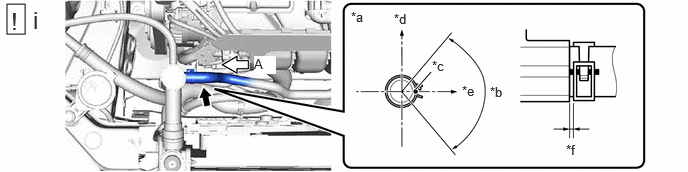

    1. GTY1077682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120° (Tabs of Clip Installation Area)
      *c Paint Mark *d Upper Side of Vehicle
      *e Rear Side of Vehicle *f 2 to 5 mm (0.0787 to 0.197 in.)
      1. Connect the No. 5 water by-pass hose to the radiator assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 5 water by-pass hose until it contacts the hose stopper of the radiator assembly.
        • Make sure that the tabs of the clip are within the area shown in the illustration.
  8. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

  9. INSTALL NO. 1 RADIATOR AIR GUIDE RH
  10. INSTALL NO. 1 RADIATOR AIR GUIDE LH
  11. INSTALL THERMISTOR ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  12. INSTALL HOOD LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    Refer to PROCEDURE - Step 4 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 4 [03/2022 - ]
  13. INSTALL HOOD LOCK ASSEMBLY LH
    Refer to PROCEDURE - Step 5 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 5 [03/2022 - ]
  14. INSTALL HOOD LOCK CONTROL JUNCTION ASSEMBLY

    Refer to PROCEDURE - Step 6 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 6 [03/2022 - ]

  15. CONNECT HOOD LOCK CONTROL CABLE AND LEVER SET
  16. INSTALL HOOD LOCK CONTROL COVER

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 8 [03/2022 - ]

  17. INSTALL HOOD SUPPORT TENSION SPRING
  18. INSTALL INLET AIR CLEANER ASSEMBLY
    Refer to PROCEDURE - Step 8
  19. INSTALL HEADLIGHT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  20. INSTALL HEADLIGHT ASSEMBLY LH

    for LED Type Turn Signal Light: Refer to INSTALLATION [11/2021 - ]

    for Bulb Type Turn Signal Light: Refer to INSTALLATION [11/2021 - ]

  21. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 7 [03/2022 - ]

  22. INSTALL FRONT NO. 2 BUMPER ENERGY ABSORBER
  23. INSTALL FRONT BUMPER ASSEMBLY

    for Sport Package: Refer to INSTALLATION [11/2021 - ]

    except Sport Package: Refer to INSTALLATION [11/2021 - ]

  24. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  25. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  26. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [11/2021 - ]

  27. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 72

  28. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 73

  29. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH
  30. INSTALL FRONT FENDER FRONT SPLASH SHIELD LH
