The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine unit removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ECM	Update ECU security key	Vehicle Control History (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [11/2021 - ]
	Perform Vehicle Identification Number (VIN) registration	DTC is output	Refer to REGISTRATION [11/2021 - ]
	Code registration	Engine start function	Refer to REGISTRATION [11/2021 - ]
Replacement of engine assembly Gas leak from exhaust system is repaired Replacement of throttle body with motor assembly Cleaning the deposits from the throttle body assembly Replacement of cam timing control motor with EDU assembly3 Replacement of camshaft timing gear assembly3 Replacement of cylinder head sub-assembly Replacement of camshaft (for intake or exhaust camshaft) Replacement of camshaft timing exhaust gear assembly Replacement of port fuel injector assembly Replacement of direct fuel injector assembly Replacement of fuel (engine room side) pump assembly (for high pressure side) Replacement of spark plug Replacement of ignition coil assembly Replacement of EGR valve assembly Replacement of knock control sensor	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2021 - ]
Replacement of starter assembly*1	Clear the number of starter operations	Stop and Start System	Refer to REGISTRATION [11/2021 - ]
Replacement of battery	Integrated current value initialization	Stop and Start System	Refer to REGISTRATION [11/2021 - ]
Replacement of automatic transaxle assembly	Perform reset memory Input transaxle compensation code into ECM Perform road test to allow ECM to learn	Large shift shock Deterioration of fuel efficiency	for UB80E, UB80FInitialization: Refer to INITIALIZATION [11/2021 - ] for UB80E, UB80FRegistration: Refer to REGISTRATION [11/2021 - ]
Replacement of ECM (If transaxle compensation code read from ECM)	Perform reset memory*2 Transfer transaxle compensation code Perform road test to allow ECM to learn
Replacement of ECM (If transaxle compensation code not read from ECM)	Perform reset memory*2 Reset transaxle compensation code Perform road test to allow ECM to learn
Replacement of automatic transaxle fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	Refer to INITIALIZATION [11/2021 - ]
Tires	Initialization56 Tire Position Identification56	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [11/2021 - 03/2023]
	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [11/2021 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024]
for A25A-FKS (Type B) Tire	ECU Data Initialization (When performing tire replacement after RoB code X2104 is output)	Dynamic Torque Control AWD System (for T24A-FTS, A25A-FKS (Type B))	Refer to CALIBRATION [11/2021 - 03/2023]
Wheel alignment adjustment	Perform reset memory Perform "Calibration"	DTCs are stored ABS warning light illuminates Slip indicator light illuminates Electronically controlled brake system does not operate correctly	Refer to RESET MEMORY / CALIBRATION [11/2021 - ]
Steering intermediate shaft assembly*4	Automatic rack centering	-	Refer to POWER STEERING ECU INITIAL SETTING [11/2021 - ]
Replacement of front bumper assembly*3	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024]
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [11/2021 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024]
	Perform headlight ECU sub-assembly LH initialization	Lighting System (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [11/2021 - 03/2022]

*1: When the starter assembly is replaced, "ST No. 1 relay" must be also replaced.

*2: Not necessary when ECM replaced with new one

*3: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*4: If matchmarks were not placed when removing parts related to steering operation, perform automatic rack centering.

*5: Also necessary after performing a tire rotation.

*6: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) battery terminal.
Refer to INSPECTION MODE PROCEDURE [11/2021 - ]
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2021 - ]
Adaptive High Beam System
Lighting System (EXT)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [11/2021 - 03/2023]

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

Fig 1: Engine Unit Removal Components [11/2021 - 03/2022] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	DRIVE SHAFT BEARING BRACKET	43457	-	-	-
2	NO. 2 ENGINE COVER	12602C	-	-	-
3	V-RIBBED BELT	16361A	See step 3	-	-
4	GENERATOR ASSEMBLY	27060	-	-	-
5	COMPRESSOR ASSEMBLY WITH PULLEY	88310	See step 5	-	-
6	V-RIBBED BELT TENSIONER ASSEMBLY	16620D	See step 6	-	-
7	NO. 2 TIMING CHAIN COVER INSULATOR	11336A	-	-	-

for 2WD

for AWD

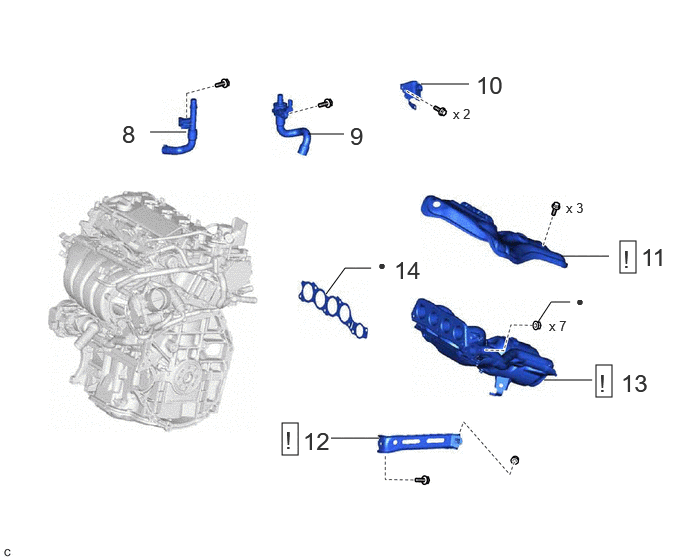

Fig 2: Engine Unit Removal Components [11/2021 - 03/2022] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
8	NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY	16207	-	-	-
9	FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)	16260	-	-	-
10	NO. 2 WATER HOSE CLAMP BRACKET	16575B	-	-	-
11	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	17167	See step 11	-	-
12	MANIFOLD STAY	17118	See step 12	-	-
13	EXHAUST MANIFOLD (TWC: Front Catalyst)	17141	See step 13	-	-
14	EXHAUST MANIFOLD TO HEAD GASKET	17173	-	-	-

•

Non-reusable part

Fig 3: Engine Unit Removal Components [11/2021 - 03/2022] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
15	NO. 6 WATER BY-PASS HOSE	16283	-	-	-
16	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	See step 16	-	-
17	NO. 5 WATER BY-PASS HOSE	16282	See step 17	-	-
18	THROTTLE BODY GASKET	22271	-	-	-
19	NO. 3 WATER BY-PASS HOSE	16267	-	-	-
20	DISCONNECT NO. 4 WATER BY-PASS HOSE	16281	-	-	-
21	EGR COOLER ASSEMBLY	25680	-	-	-
22	EGR VALVE GASKET	25627	-	-	-
23	NO. 1 EGR COOLER GASKET	25685	-	-	-
24	NO. 1 EGR PIPE SUB-ASSEMBLY	25601	See step 24	-	-
25	EGR VALVE ADAPTER GASKET	25629	-	-	-
26	EGR INLET GASKET	25628	-	-	-
27	REMOVE NO. 4 WATER BY-PASS HOSE	16281	-	-	-
28	EGR VALVE ASSEMBLY	25620	See step 28	-	-
29	NO. 3 WATER BY-PASS PIPE	16279	See step 29	-	-
30	NO. 2 WATER BY-PASS PIPE	16278	See step 30	-	-
31	INTAKE MANIFOLD	17111	See step 31	-	-
32	NO. 1 INTAKE MANIFOLD TO HEAD GASKET	17177	-	-	-

*A	w/ Stud Bolt	*B	w/o Stud Bolt
*C	for Type A	*D	for Type B
•	Non-reusable part	-	-

Fig 4: Engine Unit Removal Components [11/2021 - 03/2022] (4 Of 6)

Callout - Procedure		Part Name Code
33	FUEL TUBE SUB-ASSEMBLY	23910A	See step 33	-	-
34	NO. 1 FUEL PIPE SUB-ASSEMBLY	23801P	See step 34	-	-
35	FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY	23100X	See step 35	-	-
36	FUEL PUMP SPACER GASKET	23224D	-	-	-
37	FUEL PUMP LIFTER ASSEMBLY	23470	-	-	-
38	NO. 7 WATER BY-PASS HOSE	16295	-	-	-
39	SENSOR WIRE	82219A	See step 39	-	-
40	NO. 6 ENGINE WIRE	82126A	-	-	-

*1	FUEL PIPE CLAMP	*2	FUEL PUMP FLANGE
•	Non-reusable part	-	-

Fig 5: Engine Unit Removal Components [11/2021 - 03/2022] (5 Of 6)

Callout - Procedure		Part Name Code
41	FUEL DELIVERY PIPE SUB-ASSEMBLY	23807	See step 41	-	-
42	NO. 1 DELIVERY PIPE SPACER	23807V	-	-	-
43	INJECTOR VIBRATION INSULATOR	23291	-	-	-
44	NO. 5 ENGINE WIRE	82125N	-	-	-
45	PORT FUEL INJECTOR ASSEMBLY	23250F	See step 45	-	-
46	FUEL DELIVERY PIPE	23814B	See step 46	-	-
47	DIRECT FUEL INJECTOR ASSEMBLY	23250E	See step 47	-	-
48	NOZZLE HOLDER CLAMP	23695A	-	-	-
49	NO. 3 FUEL INJECTOR BACK-UP RING	23258	See step 49	-	-
50	NO. 1 FUEL INJECTOR BACK-UP RING	23256	-	-	-
51	C-RING	-	-	-	-
52	INJECTOR VIBRATION INSULATOR	23291A	-	-	-
53	FUEL INJECTOR SEAL	23255A	See step 53	-	-

•

Non-reusable part

Fig 6: Engine Unit Removal Components [11/2021 - 03/2022] (6 Of 6)

Callout - Procedure		Part Name Code
54	IGNITION COIL ASSEMBLY	19500	See step 54	-	-
55	ENGINE OIL LEVEL DIPSTICK GUIDE	11452	See step 55	-	-
56	NO. 3 EXHAUST MANIFOLD HEAT INSULATOR	17169A	-	-	-
57	PURGE VALVE (PURGE VSV)	25860	-	-	-
58	NO. 2 VACUUM SWITCHING VALVE BRACKET	25861A	See step 58	-	-
59	WIRE HARNESS CLAMP BRACKET	-	See step 59	-	-
60	STUD BOLT	-	See step 60	-	-

*1	ENGINE OIL LEVEL DIPSTICK	-	-
•	Non-reusable part	-	-
