Removal [11/2021 - 03/2024]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
for 2WD:

Refer to REMOVAL [11/2021 - 03/2022] , or refer to REMOVAL [03/2022 - 03/2024]

for AWD:

Refer to REMOVAL [11/2021 - 03/2022] , or refer to REMOVAL [03/2022 - 03/2024]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

NOTE:

Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
Using an engine sling device and engine lift, secure the engine assembly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

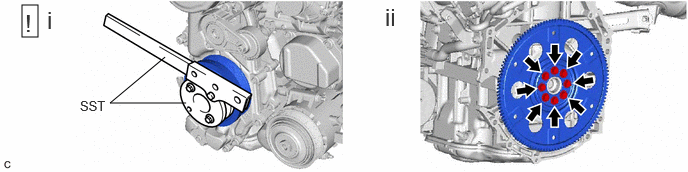

Using SST, hold the crankshaft pulley assembly.
- SST: 09213-54015
- SST: 09330-00021
Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly.

REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

REMOVE REAR ENGINE OIL SEAL

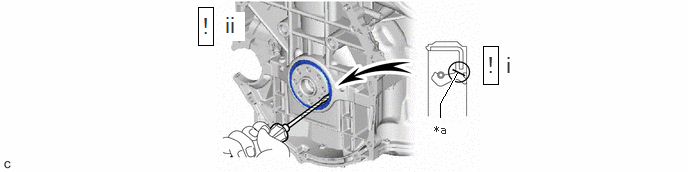

Cut Position

Using a knife, cut off the lip of the rear engine oil seal.
Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
NOTE:
Be careful not to damage the crankshaft.
