Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

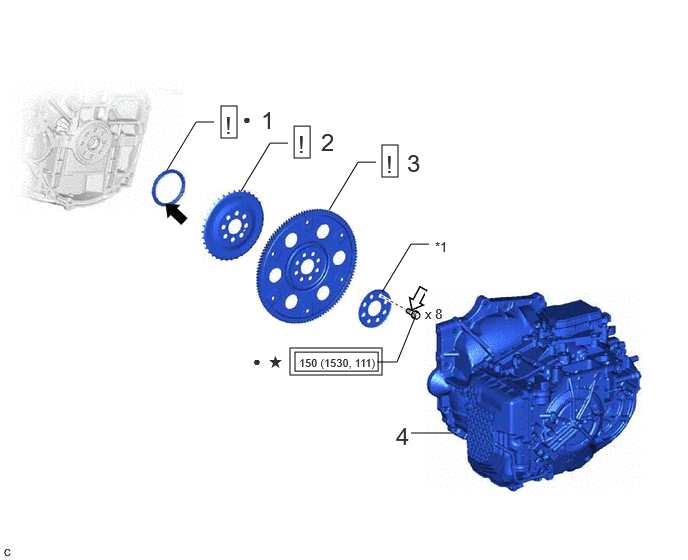

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR ENGINE OIL SEAL | 11401L | See step 1 | - | - |
| 2 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | 19315 | See step 2 | - | - |
| 3 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | 32101 | See step 3 | - | - |
| 4 | AUTOMATIC TRANSAXLE ASSEMBLY | 30500 | - | - | - |
| *1 | REAR DRIVE PLATE SPACER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |
