Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

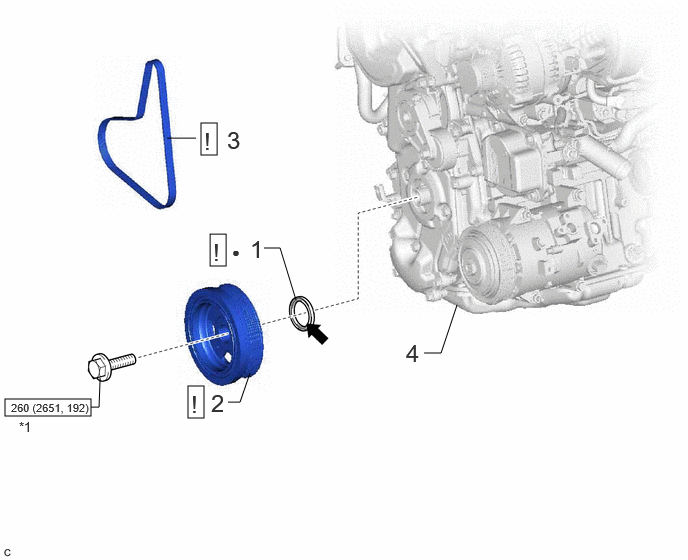

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TIMING CHAIN COVER OIL SEAL | 11301C | See step 1 | - | - |
| 2 | CRANKSHAFT PULLEY ASSEMBLY | 13470 | See step 2 | - | - |
| 3 | V-RIBBED BELT | 16361A | See step 3 | - | - |
| 4 | ENGINE ASSEMBLY WITH TRANSAXLE | - | - | - | - |
| *1 | CRANKSHAFT PULLEY BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
