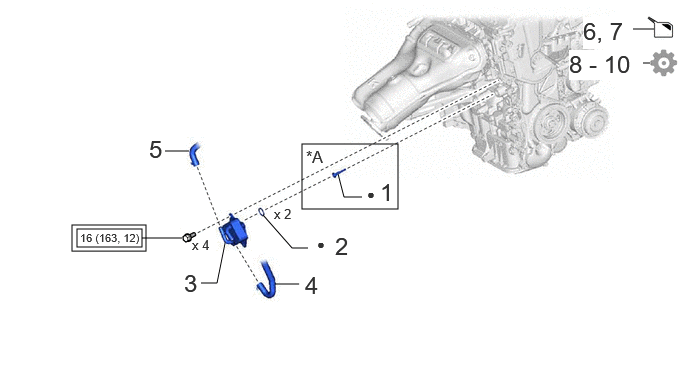

Fig 1: Engine Oil Cooler Installation Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	OIL CONTROL VALVE FILTER	15678	-	-	-
2	OIL COOLER GASKET	15785	-	-	-
3	OIL COOLER ASSEMBLY	15710	-	-	-
4	NO. 2 WATER BY-PASS HOSE	16264D	-	-	-
5	NO. 1 WATER BY-PASS HOSE	16261Z	-	-	-
6	ADD ENGINE OIL	-	-	See step 6	-
7	ADD ENGINE COOLANT	-	-	See step 7	-
8	INSPECT FOR ENGINE OIL LEAK	-	-	-	See step 8
9	CHECK ENGINE OIL LEVEL	-	-	-	See step 9
10	INSPECT FOR COOLANT LEAK	-	-	-	See step 10

*A	w/ Filter	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
•	Non-reusable part	-	-

Fig 2: Engine Oil Cooler Installation Components With Torque Specifications (2 Of 2)

Callout - Procedure		Part Name Code
11	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-
12	NO. 1 ENGINE UNDER COVER	51441	-	-	-
13	FRONT FENDER FRONT SPLASH SHIELD LH	53896B	-	-	-
14	FRONT FENDER FRONT SPLASH SHIELD RH	53895B	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque
