Parts Location [11/2021 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

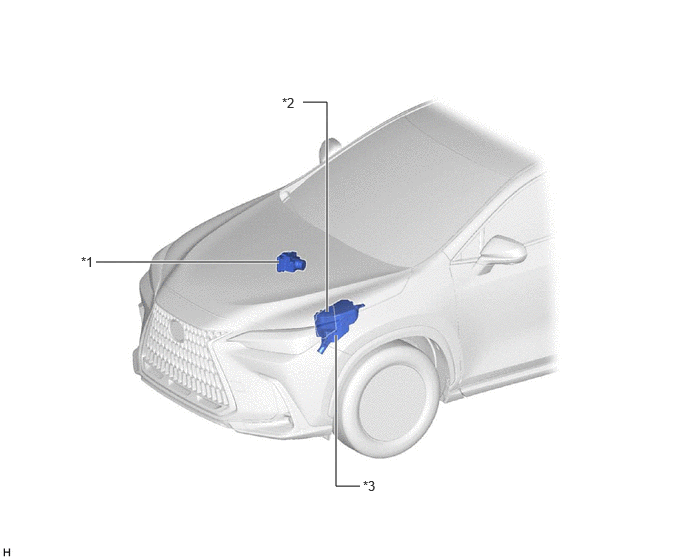

*1	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*2	ECM
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 2 FUSE	-	-

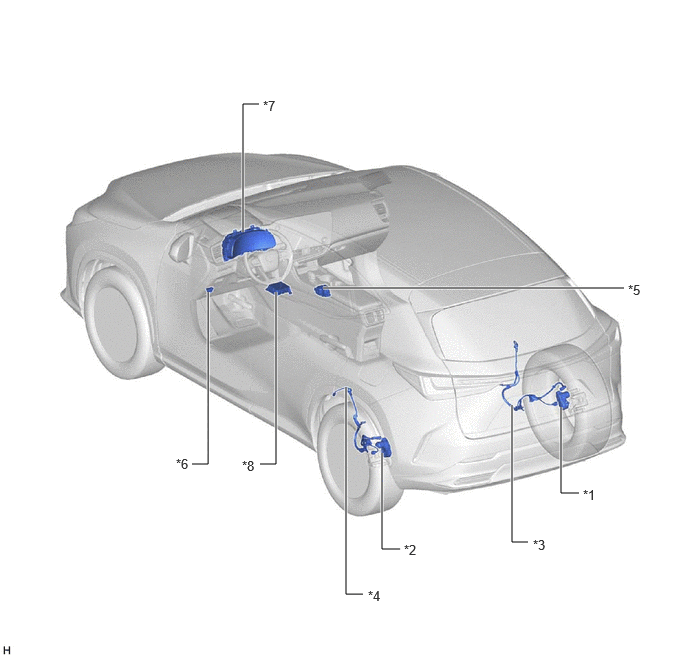

*1	PARKING BRAKE ACTUATOR ASSEMBLY RH	*2	PARKING BRAKE ACTUATOR ASSEMBLY LH
*3	NO. 1 PARKING BRAKE WIRE ASSEMBLY	*4	NO. 2 PARKING BRAKE WIRE ASSEMBLY
*5	ELECTRIC PARKING BRAKE SWITCH ASSEMBLY	*6	DLC3
*7	COMBINATION METER ASSEMBLY	*8	AIRBAG SENSOR ASSEMBLY - ACCELERATION SENSOR
