Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (INSTALLATION)

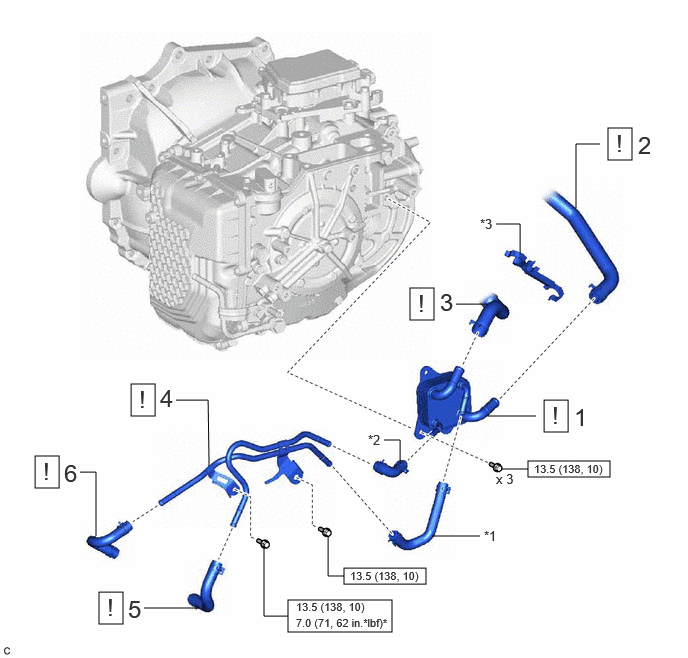

Fig 1: Oil Cooler Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	TRANSMISSION OIL COOLER	33493A	See step 1	-	-
2	WATER BY-PASS HOSE ASSEMBLY	16260	See step 2	-	-
3	NO. 1 WATER BY-PASS HOSE	16261G	See step 3	-	-
4	NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE	32907C	See step 4	-	-
5	INLET NO. 1 OIL COOLER HOSE	32941	See step 5	-	-
6	OUTLET NO. 1 OIL COOLER HOSE	32942	See step 6	-	-

*1	OUTLET NO. 2 OIL COOLER HOSE	*2	INLET NO. 2 OIL COOLER HOSE
*3	TRANSMISSION BREATHER CLAMP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST

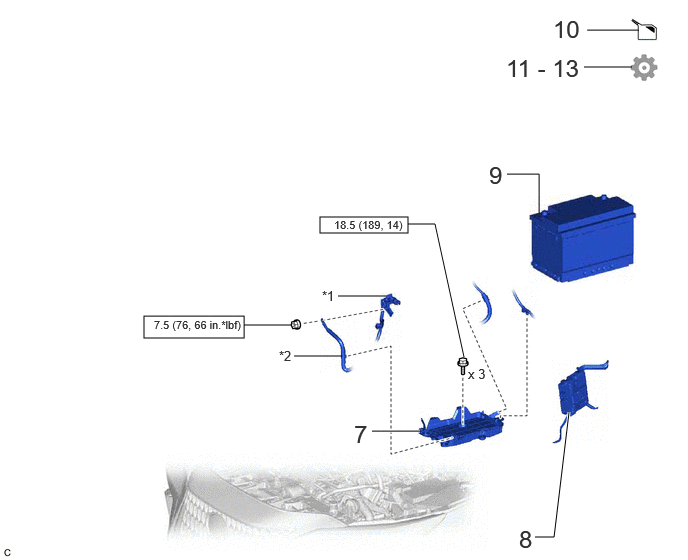

Fig 2: Oil Cooler Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
7	BATTERY CLAMP SUB-ASSEMBLY	74404B	-	-	-
8	ECM	89661	-	-	-
9	BATTERY	28800	-	-	-
10	ADD ENGINE COOLANT	-	-	See step 10	-
11	ADJUST AUTOMATIC TRANSAXLE FLUID	-	-	-	See step 11
12	INSPECT FOR OIL LEAK	-	-	-	See step 12
13	INSPECT FOR COOLANT LEAK	-	-	-	See step 13

*1	NO. 2 ENGINE WIRE	*2	ENGINE ROOM MAIN WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

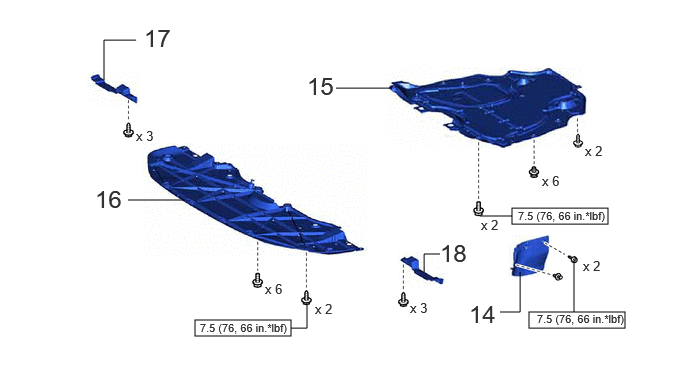

Fig 3: Oil Cooler Installation Components With Torque Specifications (3 Of 3)

Callout - Procedure		Part Name Code
14	FRONT FENDER APRON SEAL LH	53737B	-	-	-
15	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-
16	NO. 1 ENGINE UNDER COVER	51441	-	-	-
17	FRONT FENDER SPLASH SHIELD FRONT RH	53895B	-	-	-
18	FRONT FENDER SPLASH SHIELD FRONT LH	53896B	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque
