Components [11/2021 - ]
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

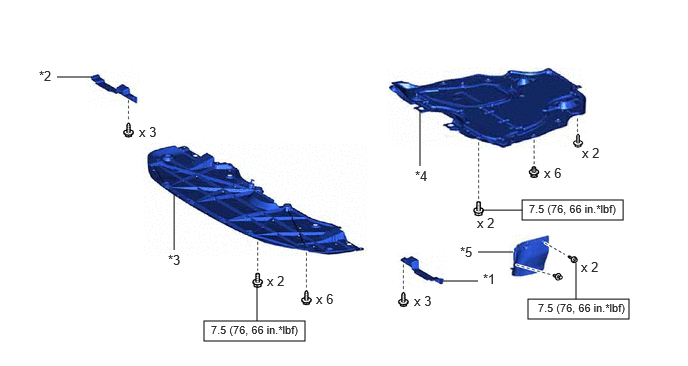

| *1 |
FRONT FENDER FRONT SPLASH SHIELD LH |
*2 |
FRONT FENDER FRONT SPLASH SHIELD RH |
| *3 |
NO. 1 ENGINE UNDER COVER |
*4 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *5 |
FRONT FENDER APRON SEAL LH |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

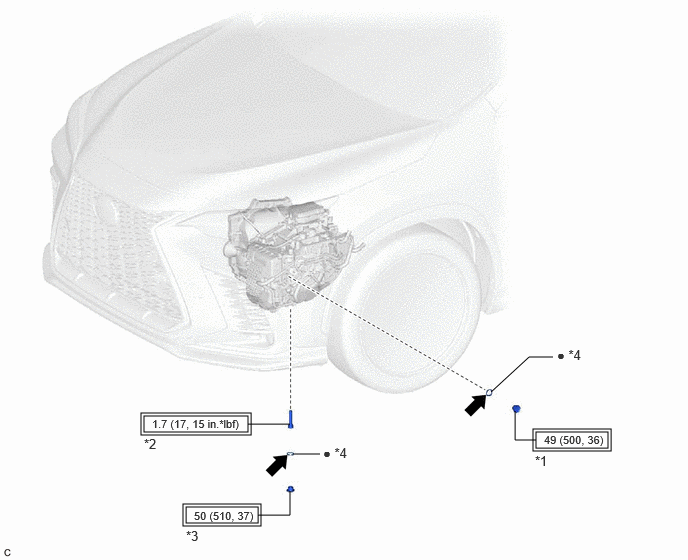

| *1 |
REFILL PLUG |
*2 |
NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 |
OVERFLOW PLUG |
*4 |
GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |
