Parts Location [03/2023 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | HEADLIGHT ECU SUB-ASSEMBLY RH (w/ Automatic Headlight Beam Level Control System) |
| *3 | HEADLIGHT ECU SUB-ASSEMBLY LH (w/ Automatic Headlight Beam Level Control System) |
*4 | FRONT SIDE RADAR SENSOR (LH) (w/ Front Side Radar Sensor System) |
| *5 | BRAKE ACTUATOR ASSEMBLY | *6 | ECM |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *8 | FORWARD RECOGNITION CAMERA |
| *9 | INNER REAR VIEW MIRROR ASSEMBLY (w/ Digital Inner Mirror System) |
*10 | OUTER MIRROR CONTROL ECU ASSEMBLY LH |
| *11 | RACK AND PINION POWER STEERING GEAR ASSEMBLY | - | - |

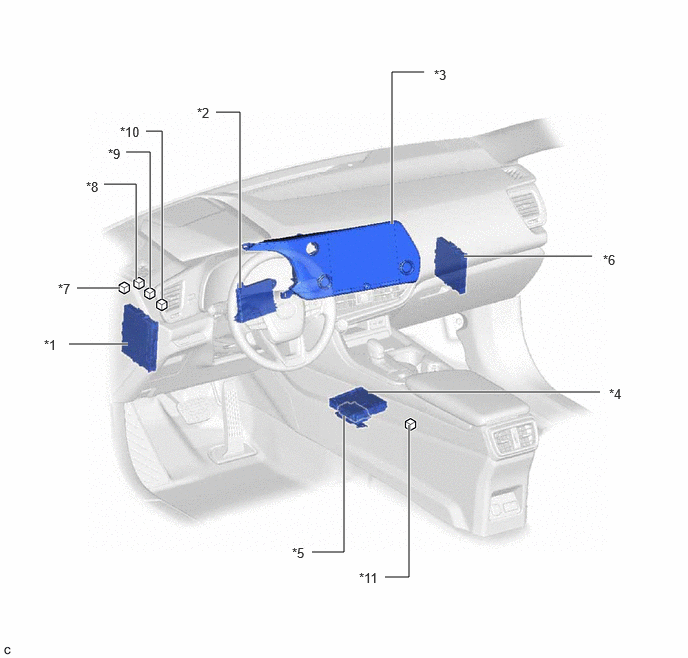

| *1 | POWER DISTRIBUTION BOX ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | *4 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| *5 | TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU) | *6 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | STEERING SENSOR |
| *9 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
*10 | DLC3 |
| *11 | OPTION CONNECTOR (BUS BUFFER ECU) | *12 | NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
| *13 | NO. 16 GLOBAL CAN JUNCTION CONNECTOR | *14 | NO. 4 GLOBAL CAN JUNCTION CONNECTOR |
| *15 | NO. 5 GLOBAL CAN JUNCTION CONNECTOR | - | - |
| *1 | ENGINE STOP AND START ECU | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver) |
| *5 | STEREO COMPONENT EQUALIZER ASSEMBLY (w/ Active Noise Control System) |
*6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | NO. 1 GLOBAL CAN JUNCTION CONNECTOR | *8 | NO. 8 GLOBAL CAN JUNCTION CONNECTOR |
| *9 | NO. 2 GLOBAL CAN JUNCTION CONNECTOR | *10 | NO. 2 CAN JUNCTION CONNECTOR |
| *11 | NO. 7 GLOBAL CAN JUNCTION CONNECTOR | - | - |

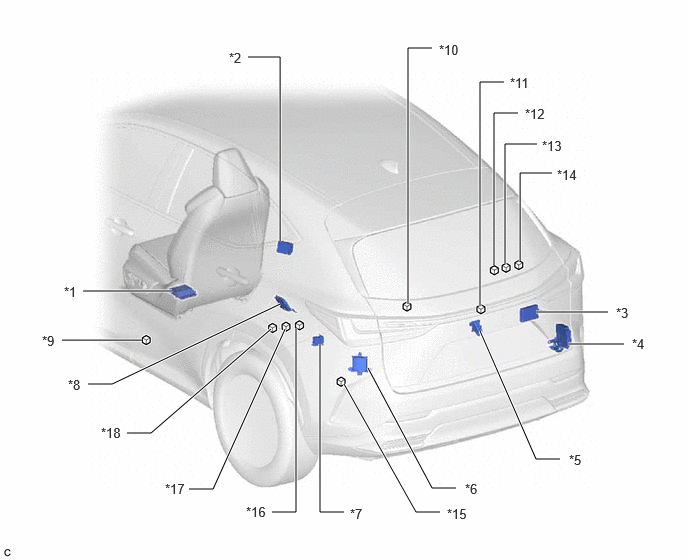

| *1 | POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
*2 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System) |
*4 | ABSORBER CONTROL ECU (w/ Adaptive Variable Suspension System) |
| *5 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
*6 | BLIND SPOT MONITOR SENSOR LH (B) |
| *7 | 4WD ECU ASSEMBLY (for AWD) |
*8 | CLEARANCE WARNING ECU ASSEMBLY (w/ Parking Support Brake System) |
| *9 | NO. 11 GLOBAL CAN JUNCTION CONNECTOR | *10 | NO. 15 GLOBAL CAN JUNCTION CONNECTOR |
| *11 | NO. 3 CAN JUNCTION TERMINAL | *12 | NO. 7 CAN JUNCTION CONNECTOR |
| *13 | NO. 2 CAN JUNCTION TERMINAL | *14 | NO. 10 GLOBAL CAN JUNCTION CONNECTOR |
| *15 | NO. 14 GLOBAL CAN JUNCTION CONNECTOR | *16 | NO. 1 CAN JUNCTION TERMINAL |
| *17 | NO. 12 GLOBAL CAN JUNCTION CONNECTOR | *18 | NO. 13 GLOBAL CAN JUNCTION CONNECTOR |
