Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

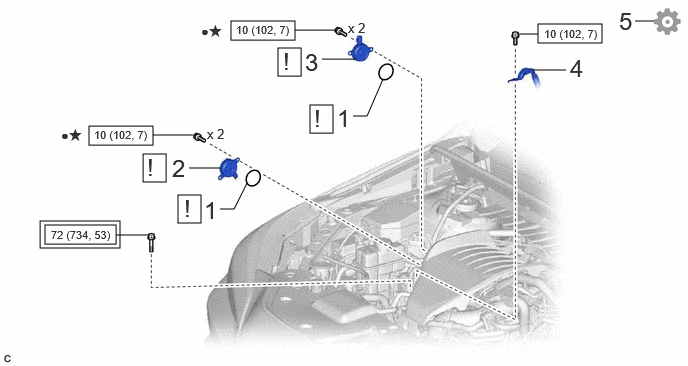

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CAM TIMING OIL CONTROL SOLENOID O-RING | 15370A | See step 1 | - | - |
| 2 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side) | 15370 | See step 2 | - | - |
| 3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side) | 15370 | See step 3 | - | - |
| 4 | NO. 2 EARTH WIRE | 82286A | - | - | - |
| 5 | INSPECT FOR ENGINE OIL LEAK | - | - | - | See step 5 |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | * | Precoated part |
