Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [11/2021 - ]

COMPONENTS (INSTALLATION)

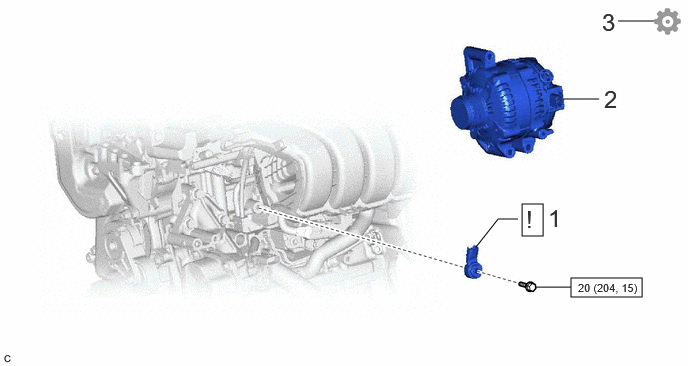

Fig 1: Knock Sensor Installation Components With Torque Specifications

Callout - Procedure		Part Name Code
1	KNOCK CONTROL SENSOR	89615	See step 1	-	-
2	GENERATOR ASSEMBLY	27060	-	-	-
3	PERFORM INITIALIZATION	-	-	-	See step 3

N.m (kgf/cm, ft.lbf): Specified torque
