COMPONENTS (REMOVAL)

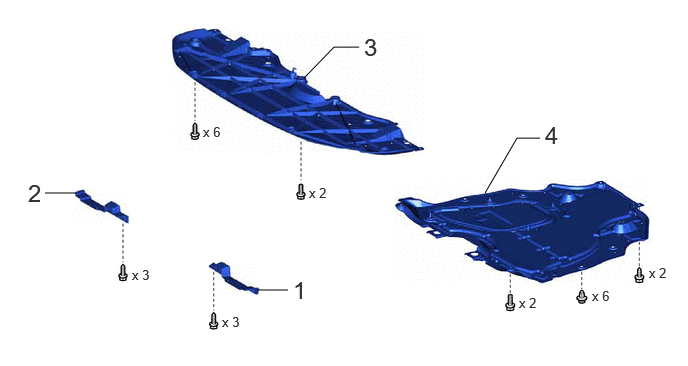

Fig 1: Active Control Engine Mount (For Front Side) Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	FRONT FENDER FRONT SPLASH SHIELD LH	53896B	-	-	-
2	FRONT FENDER FRONT SPLASH SHIELD RH	53895B	-	-	-
3	NO. 1 ENGINE UNDER COVER	51441	-	-	-
4	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-

Fig 2: Active Control Engine Mount (For Front Side) Removal Components (2 Of 2)

Callout - Procedure		Part Name Code
5	VACUUM SWITCHING VALVE (for Active Control Engine Mount System)	17650H	-	-	-
6	NO. 1 RADIATOR BRACKET	16582	-	-	-
7	VACUUM HOSE	-	-	-	-
8	FRONT ENGINE MOUNTING BRACKET	12311A	See step 8	-	-
9	FRONT ENGINE MOUNTING INSULATOR	12361A	-	-	-
10	STAY	-	-	-	-
