COMPONENTS (INSTALLATION)
Fig 1: Active Control Engine Mount (For Front Side) Installation Components With Torque Specifications (1 Of 2)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | STAY | - | - | - | - |
| 2 | FRONT ENGINE MOUNTING INSULATOR | 12361A | - | - | - |
| 3 | FRONT ENGINE MOUNTING BRACKET | 12311A | See step 3 | - | - |
| 4 | VACUUM HOSE | - | - | - | - |
| 5 | NO. 1 RADIATOR BRACKET | 16582 | - | - | - |
| 6 | VACUUM SWITCHING VALVE (for Active Control Engine Mount System) | 17650H | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

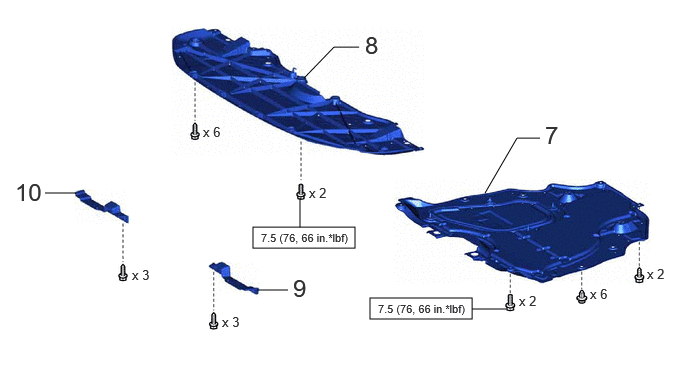

Fig 2: Active Control Engine Mount (For Front Side) Installation Components With Torque Specifications (2 Of 2)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 7 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 8 | NO. 1 ENGINE UNDER COVER | 51441 | - | - | - |
| 9 | FRONT FENDER FRONT SPLASH SHIELD LH | 53896B | - | - | - |
| 10 | FRONT FENDER FRONT SPLASH SHIELD RH | 53895B | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
