Parts Location [11/2021 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

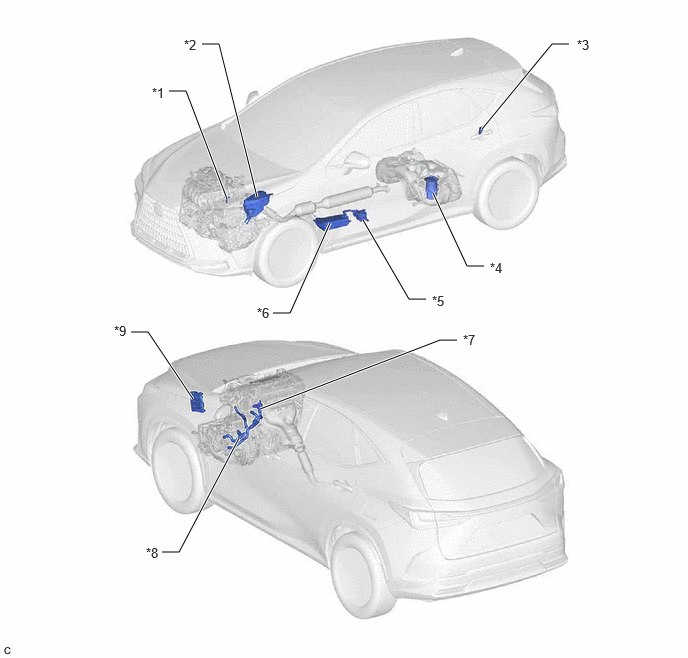

| *1 |
MASS AIR FLOW METER SUB-ASSEMBLY |
*2 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *3 |
FUEL PUMP CONTROL ECU |
*4 |
FUEL PUMP (for Low Pressure Side) |
| *5 |
CANISTER PUMP MODULE |
*6 |
CANISTER |
| *7 |
FLOW SHUTTING VALVE (for Heater Control) (WATER BY-PASS HOSE ASSEMBLY) |
*8 |
FLOW SHUTTING VALVE (for ATF Control) (NO. 1 WATER BY-PASS HOSE) |
| *9 |
ECM |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

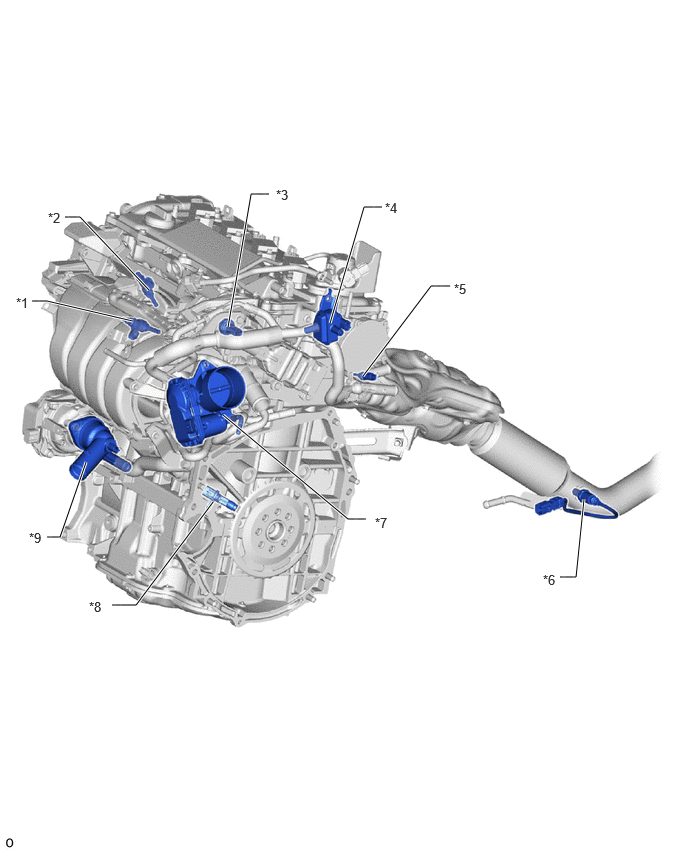

| *1 |
DIRECT FUEL INJECTOR ASSEMBLY |
*2 |
PORT FUEL INJECTOR ASSEMBLY |
| *3 |
FUEL PRESSURE SENSOR (for Low Pressure Side) |
*4 |
VACUUM SWITCHING VALVE (PURGE VSV) |
| *5 |
ENGINE COOLANT TEMPERATURE SENSOR |
*6 |
AIR FUEL RATIO SENSOR (Sensor 2) |
| *7 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*8 |
CRANKSHAFT POSITION SENSOR |
| *9 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 |
ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR (Sensor 1) |
*2 |
FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure Side) |
| *3 |
ENGINE OIL PRESSURE AND TEMPERATURE SENSOR |
*4 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*6 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 |
IGNITION COIL ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

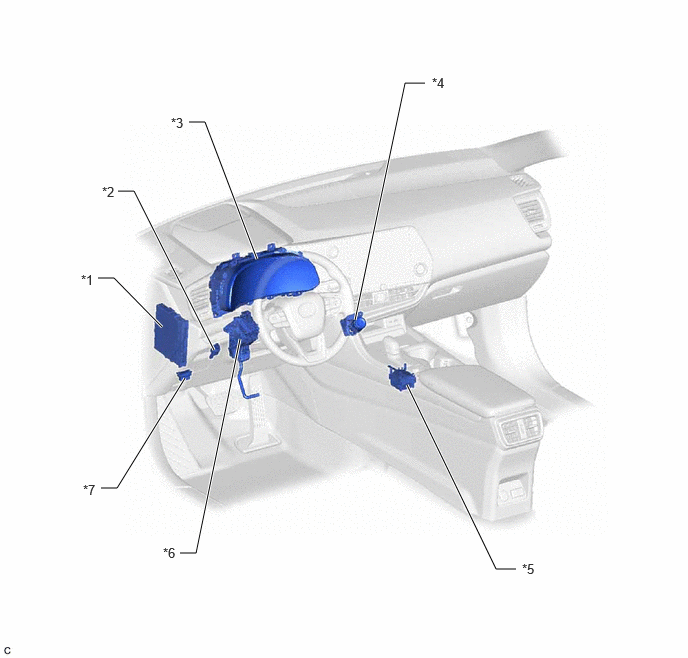

| *1 |
ENGINE STOP AND START ECU |
*2 |
STOP LIGHT SWITCH ASSEMBLY |
| *3 |
COMBINATION METER ASSEMBLY |
*4 |
COMBINATION SWITCH ASSEMBLY |
| *5 |
TRANSMISSION FLOOR SHIFT ASSEMBLY
- SHIFT CONTROL ECU
- P POSITION SWITCH
|
*6 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *7 |
DLC3 |
- |
- |
