Caution / Notice / Hint
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of battery | Integrated current value initialization | Stop and Start System | Refer to REGISTRATION [11/2021 - ] |
NOTE:
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) battery terminal.
HINT:
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lighting System (EXT) | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | Refer to INITIALIZATION [11/2021 - ] |
| Front Camera System | ||
| Adaptive High Beam System | ||
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | Refer to PRECAUTION [11/2021 - 03/2023] , or refer to PRECAUTION [03/2023 - 03/2024] , or refer to PRECAUTION [03/2024 - ] |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
E-latch System
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | Refer to INITIALIZATION [11/2021 - ] |
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [11/2021 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |

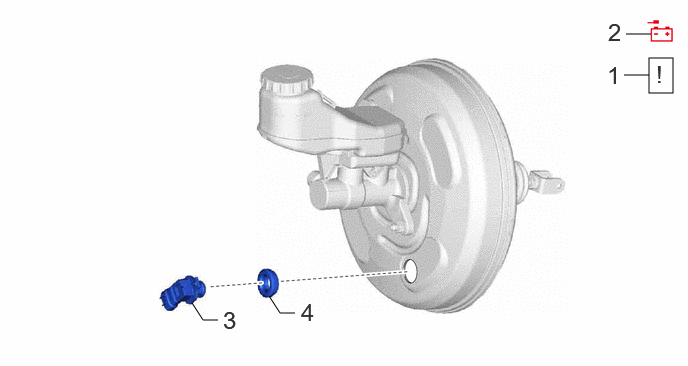

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | BATTERY | - | - | - | - |
| 3 | VACUUM SENSOR ASSEMBLY | 89420H | - | - | - |
| 4 | VACUUM SENSOR GROMMET | - | - | - | - |
