Installation [11/2021 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL VACUUM SENSOR GROMMET

INSTALL VACUUM SENSOR ASSEMBLY

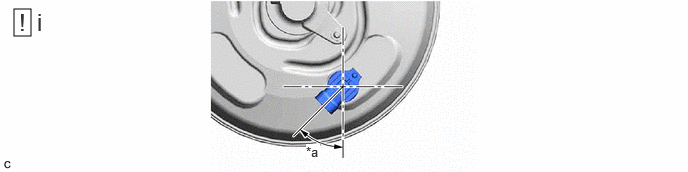

GTY1077763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

45° +/- 20°

-

-

Install the vacuum sensor assembly to the brake booster assembly so that it is positioned as shown in the illustration.

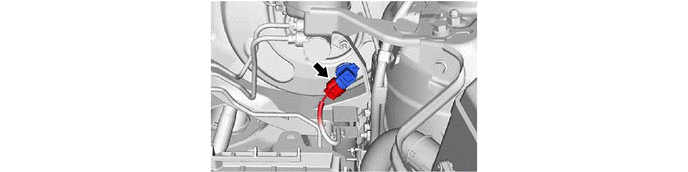

GTY1079502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL BATTERY
- for A25A-FKS:
  Refer to INSTALLATION [11/2021 - ]
- for T24A-FTS:
  Refer to INSTALLATION [11/2021 - ]
PERFORM INITIALIZATION
Refer to INITIALIZATION [11/2021 - ]
