  1. INSTALL GENERATOR DRIVE END FRAME BEARING

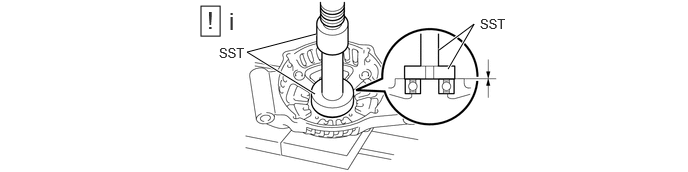

    1. GTY1077428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a press, install a new generator drive end frame bearing.
        • SST: 09950-60011
          1. 09951-00470
        • SST: 09950-70010
          1. 09951-07100
  2. INSTALL RETAINER PLATE

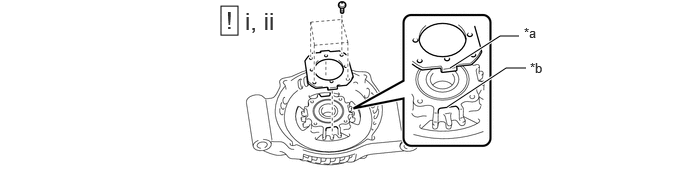

    1. GTY1076227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tab *b Cutout
      1. Fit the tabs of the retainer plate into the cutouts of the generator drive end frame to install the retainer plate.
      2. Install the 4 screws.

        Torque: 2.3 N*m (23 kgf*cm, 20 in.*lbf)

  3. INSTALL GENERATOR ROTOR ASSEMBLY
  4. INSTALL WASHER
    1. GTY1076226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Place a new washer on the generator rotor assembly.
        NOTE:

        Make sure to install the washer so that its cutout faces the bearing side, as the washer must be installed in a specific direction.

  5. INSTALL GENERATOR COIL ASSEMBLY

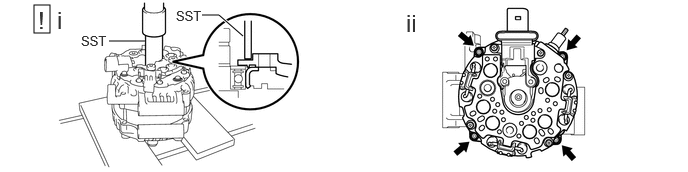

    1. GTY1076466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and press, slowly press in the generator coil assembly.
        • SST: 09612-70100
          1. 09612-07240
      2. Install the 4 bolts.

        Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

  6. INSTALL GENERATOR BRUSH HOLDER ASSEMBLY

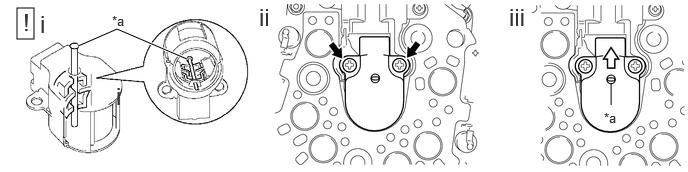

    1. GTY1076362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin (1.0 mm) - -
      Pull out - -
      1. While pushing the 2 brushes into the generator brush holder assembly, insert a 1.0 mm (0.0394 in.) pin into the generator brush holder assembly hole.
      2. Install the generator brush holder assembly to the generator coil assembly with the 2 screws.

        Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

      3. Pull out the pin from the generator brush holder assembly hole.
  7. INSTALL GENERATOR TERMINAL INSULATOR
  8. INSTALL GENERATOR REAR END COVER

    Torque: 4.6 N*m (47 kgf*cm, 41 in.*lbf)

  9. INSTALL GENERATOR PULLEY WITH CLUTCH

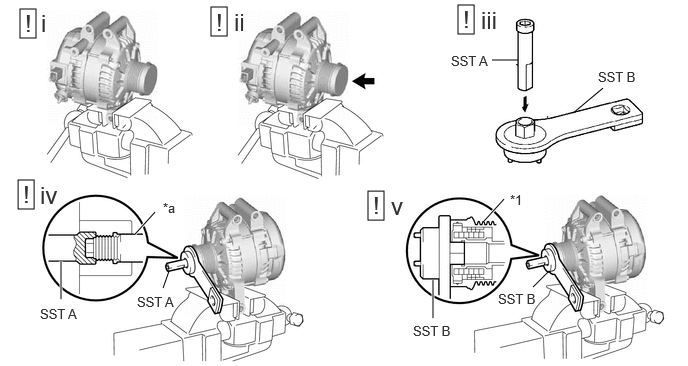

    1. GTY1077043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Generator Pulley with Clutch - -
      *a Rotor Shaft - -
      1. Secure the generator drive end frame in a vise between aluminum plates.
        NOTE:

        Do not overtighten the vise.

      2. Temporarily install a new generator pulley with clutch to the rotor shaft.
      3. Install SST (A) to SST (B) as shown in the illustration.
        • SST: 09820-63021
      4. Fit the rotor shaft end into SST (A).
      5. Fit SST (B) to the generator pulley with clutch.

        HINT:

        Make sure that SST (A) and (B) are secured to the rotor shaft and generator pulley with clutch.

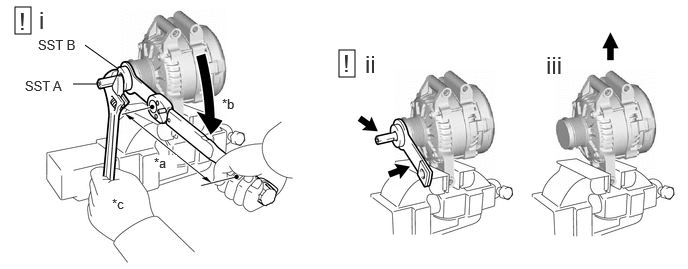

    2. GTY1076450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length *b Turn
      *c Hold - -
      1. Tighten the generator pulley with clutch by turning SST (B) as shown in the illustration.

        Specified tightening torque

        Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

        NOTE:
        • Check that the generator drive end frame is secured in the vise tightly.
        • Hold SST (A) tightly during the operation.
        • Check that the generator pulley with clutch rotates smoothly.

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [11/2021 - ]

        • When using SST (fulcrum length of 100 mm (3.94 in.)) + torque wrench (fulcrum length of 400 mm (1.312 ft.)): 64 N*m (653 kgf*cm, 47 ft.*lbf)
      2. Remove SST (A) and (B) from the generator pulley with clutch.
      3. Remove the generator drive end frame from the vise.
  10. INSTALL GENERATOR PULLEY CAP
