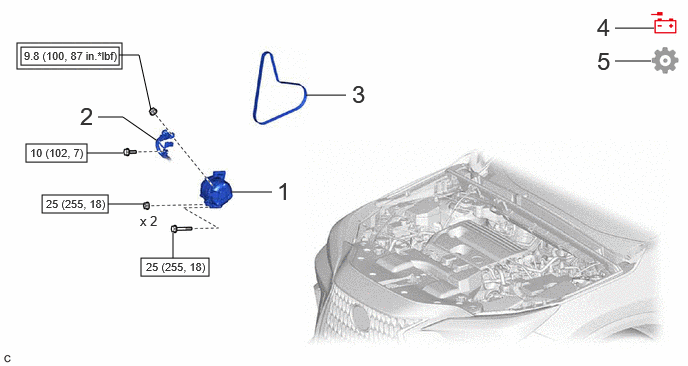

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | GENERATOR ASSEMBLY | 27060 | - | - | - |
| 2 | ENGINE WIRE | 82121 | - | - | - |
| 3 | V-RIBBED BELT | - | - | - | - |
| 4 | NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 5 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | See step 5 |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
