COMPONENTS (DISASSEMBLY)

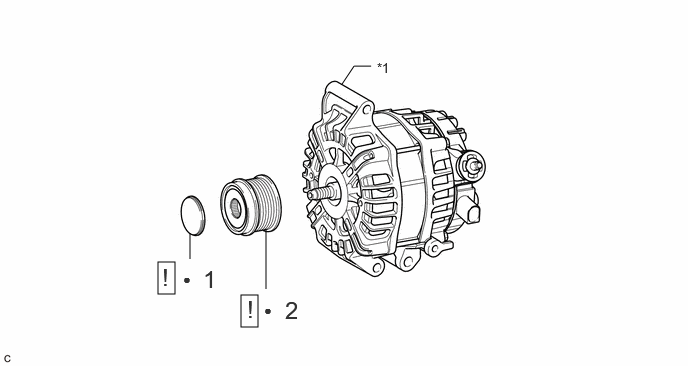

Fig 1: Generator Disassembly Components

Callout - Procedure		Part Name Code
1	GENERATOR PULLEY CAP	27416	See step 1	-	-
2	GENERATOR PULLEY WITH CLUTCH	27415	See step 2	-	-

*1	GENERATOR ASSEMBLY	-	-
•	Non-reusable part	-	-
