Check Bus 7 Line [03/2022 - 03/2024]: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver (for TMC Made) A
      except Telematics Transceiver (for TMC Made) B

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1060086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D155-6 (CA8L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1060086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D155-6 (CA8L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1064324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D155-6 (CA8L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1064326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D155-6 (CA8L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  6. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

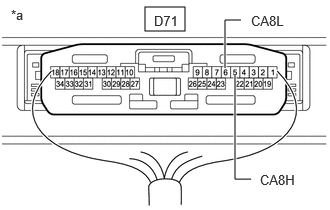

      GTY1064472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1064472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

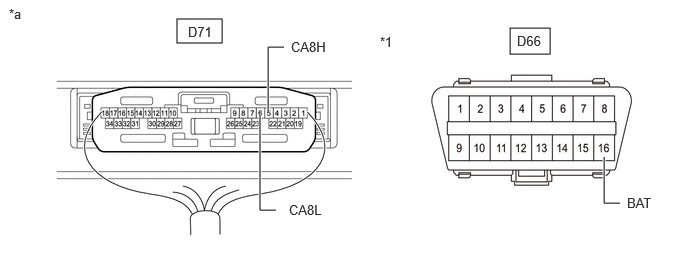

      GTY1065662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D71-6 (CA8L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

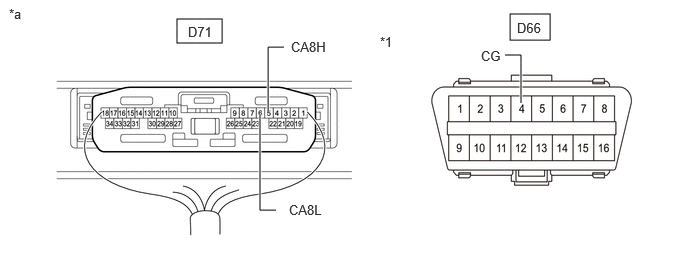

      GTY1065663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D71-6 (CA8L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      EXCEPT TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D71-6 (CA8L) - D66-4 (CG)
      W/ TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D155-6 (CA8L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the D84 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D84-1 (CAN-) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  12. CHECK FOR SHORT TO +B IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      EXCEPT TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D71-6 (CA8L) - D66-16 (BAT)
      W/ TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D155-6 (CA8L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  13

  13. CHECK FOR SHORT TO +B IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the D84 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D84-1 (CAN-) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  14. CHECK FOR SHORT IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      EXCEPT TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      W/ TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D155-6 (CA8L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  15

  15. CHECK FOR SHORT IN CAN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D84 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D84-1 (CAN-) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  16. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      EXCEPT TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D71-5 (CA8H) - D71-6 (CA8L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      W/ TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D155-5 (CA8H) - D155-6 (CA8L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  17

  17. CHECK FOR OPEN IN CAN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the D84 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D84-2 (CAN+) - D84-1 (CAN-) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
