Check Bus 6 Line [03/2022 - 03/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver (for TMC Made) A
      except Telematics Transceiver (for TMC Made) B

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1060087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-31 (CA7H) - D155-32 (CA7L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  61

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1060087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-31 (CA7H) - D155-32 (CA7L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  44

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1064303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-31 (CA7H) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D155-32 (CA7L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1064322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D155-31 (CA7H) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D155-32 (CA7L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  6. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

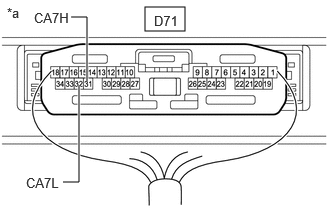

      GTY1063703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-31 (CA7H) - D71-32 (CA7L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  61

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1063703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-31 (CA7H) - D71-32 (CA7L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  44

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

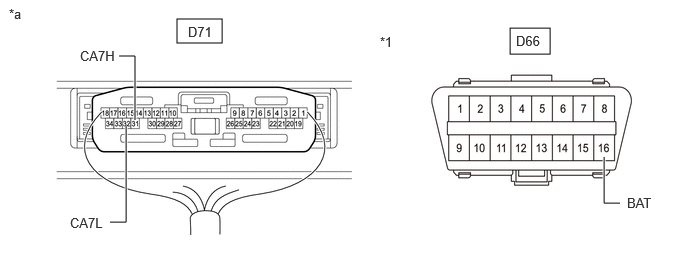

      GTY1064217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-31 (CA7H) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      D71-32 (CA7L) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

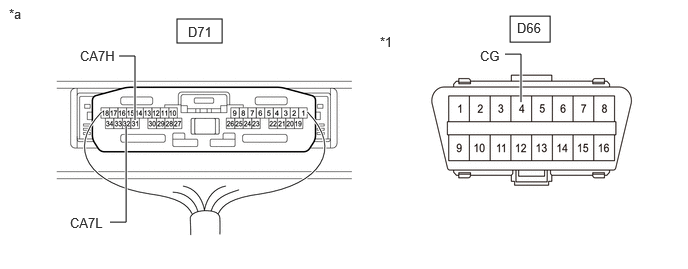

      GTY1064215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      D71-31 (CA7H) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      D71-32 (CA7L) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the G68 No. 10 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G68-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-4 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G68-15 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  12

  12. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Adaptive Variable Suspension System A
      w/o Adaptive Variable Suspension System B

    Result:

    B

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  13

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G68-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  15

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G68-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)
    1. Disconnect the G2 absorber control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G68-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ABSORBER CONTROL ECU. Refer to  REMOVAL [11/2021 - 03/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the G151 No. 13 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-3 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-14 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  17

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-6 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-17 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  23

    Result:

    OK

    See step  19

  19. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for AWD A
      for 2WD B

    Result:

    B

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  20

  20. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for A25A-FKS A
      for T24A-FTS B

    Result:

    B

    See step  25

    Result:

    A

    See step  21

  21. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  24

  22. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Disconnect the G152 No. 1 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-13 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)

  23. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the G90 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-6 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-17 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  24. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the G93 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-1 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-12 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  25. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-16 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  26

  26. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the G92 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-5 (CANH) - D66-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      G151-16 (CANL) - D66-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the G68 No. 10 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G68-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  31

    Result:

    OK

    See step  28

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-4 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G68-15 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  33

    Result:

    OK

    See step  29

  29. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Adaptive Variable Suspension System A
      w/o Adaptive Variable Suspension System B

    Result:

    B

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  30

  30. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G68-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  32

  31. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G68-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  32. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)
    1. Disconnect the G2 absorber control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G68-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ABSORBER CONTROL ECU. Refer to  REMOVAL [11/2021 - 03/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)

  33. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the G151 No. 13 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-3 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-14 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  34

  34. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  35

  35. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-6 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-17 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  40

    Result:

    OK

    See step  36

  36. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for AWD A
      for 2WD B

    Result:

    B

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  37

  37. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for A25A-FKS A
      for T24A-FTS B

    Result:

    B

    See step  42

    Result:

    A

    See step  38

  38. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  41

  39. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Disconnect the G152 No. 1 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-13 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)

  40. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the G90 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-6 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-17 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  41. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the G93 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-1 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-12 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  42. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-16 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  43

  43. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the G92 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-5 (CANH) - D66-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      G151-16 (CANL) - D66-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  44. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the G68 No. 10 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - G68-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  48

    Result:

    OK

    See step  45

  45. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-4 (CANH) - G68-15 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  50

    Result:

    OK

    See step  46

  46. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Adaptive Variable Suspension System A
      w/o Adaptive Variable Suspension System B

    Result:

    B

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  47

  47. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-2 (CANH) - G68-13 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  49

  48. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - G68-12 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  49. CHECK FOR SHORT IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)
    1. Disconnect the G2 absorber control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-2 (CANH) - G68-13 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE ABSORBER CONTROL ECU. Refer to  REMOVAL [11/2021 - 03/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - ABSORBER CONTROL ECU)

  50. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the G68 No. 10 global CAN junction connector.
    2. Disconnect the G151 No. 13 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-3 (CANH) - G151-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  51

  51. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - G151-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  58

    Result:

    OK

    See step  52

  52. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-6 (CANH) - G151-17 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  56

    Result:

    OK

    See step  53

  53. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for AWD A
      for 2WD B

    Result:

    B

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    A

    See step  54

  54. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for A25A-FKS A
      for T24A-FTS B

    Result:

    B

    See step  59

    Result:

    A

    See step  55

  55. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-1 (CANH) - G151-12 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  57

  56. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the G90 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-6 (CANH) - G151-17 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  57. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the G93 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-1 (CANH) - G151-12 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  58. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Disconnect the G152 No. 1 CAN junction terminal connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - G151-13 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)

  59. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-5 (CANH) - G151-16 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  60

  60. CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
    1. Disconnect the G92 4WD ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-5 (CANH) - G151-16 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE 4WD ECU ASSEMBLY. Refer to  REMOVAL [11/2021 - 03/2024]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

  61. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      EXCEPT TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D71-31 (CA7H) - D71-32 (CA7L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      W/ TELEMATICS TRANSCEIVER (FOR TMC MADE)

      Tester Connection Condition Specified Condition
      D155-31 (CA7H) - D155-32 (CA7L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    See step  62

  62. CHECK FOR OPEN IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the D71 or D155 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the G68 No. 10 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-1 (CANH) - G68-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  63

  63. CHECK FOR OPEN IN CAN BUS LINES (NO. 10 GLOBAL CAN JUNCTION CONNECTOR - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G68-4 (CANH) - G68-15 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 10 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  64

  64. CHECK FOR OPEN IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the G68 No. 10 global CAN junction connector.
    2. Disconnect the G151 No. 13 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-3 (CANH) - G151-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 10 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  65

  65. CHECK FOR OPEN IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G151-2 (CANH) - G151-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  66

  66. CHECK FOR OPEN IN CAN BUS LINES (NO. 1 CAN JUNCTION TERMINAL - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the G151 No. 13 global CAN junction connector.
    2. Disconnect the G152 No. 1 CAN junction terminal.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G152-3 (CANH) - G152-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 CAN JUNCTION TERMINAL

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 1 CAN JUNCTION TERMINAL - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
