Parts Location [03/2023 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ECM |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - IGP NO. 1 RELAY - ST NO. 1 RELAY - ECU-DCC NO. 2 FUSE - ST NO. 1 FUSE |
*4 | STARTER ASSEMBLY |
| *1 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *2 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *3 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | - | - |
| *A | w/ Wireless Charging System | *B | for Remote Connect Compatible Type |

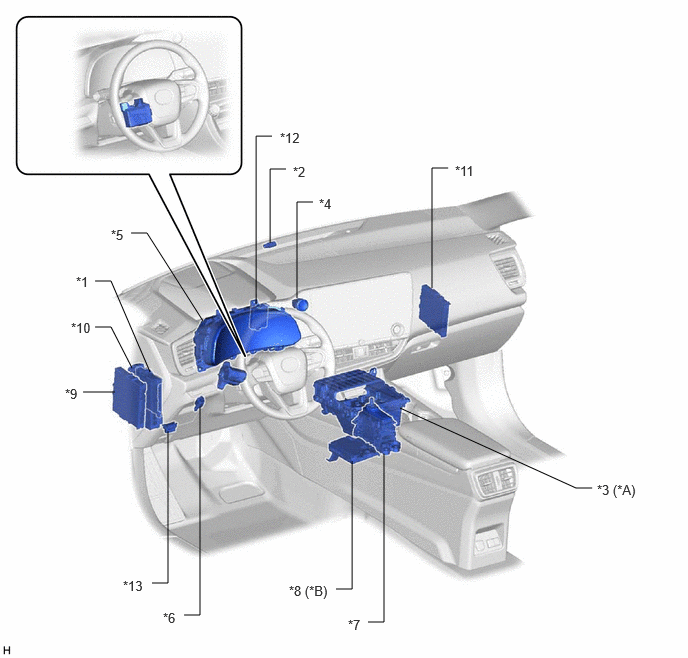

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | THEFT WARNING INDICATOR LIGHT ASSEMBLY |
| *3 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY | *4 | ENGINE SWITCH |
| *5 | COMBINATION METER ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *8 | DCM (TELEMATICS TRANSCEIVER) |
| *9 | ENGINE STOP AND START ECU | *10 | POWER DISTRIBUTION BOX ASSEMBLY - ACC RELAY - IGR NO. 1 RELAY - IGR NO. 2 RELAY - +BA RELAY - AM2 FUSE - STOP FUSE - ECU-B NO. 1 FUSE - ECU-ACC FUSE - ECU-IGR NO. 1 FUSE - ECU-IGR NO. 2 FUSE - ECU-IGP NO. 2 FUSE - +BA NO. 1 FUSE - +BA NO. 2 FUSE |
| *11 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *12 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *13 | DLC3 | - | - |
