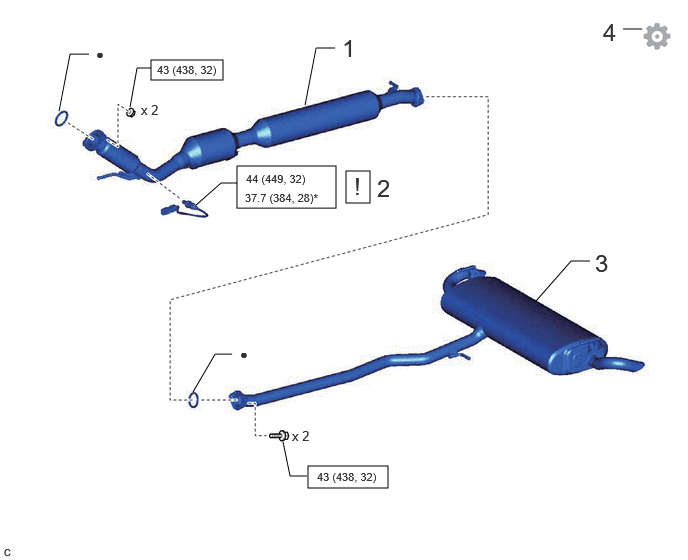

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | 17410 | - | - | - |
| 2 | AIR FUEL RATIO SENSOR (for Sensor 2) | 89467C | See step 2 | - | - |
| 3 | TAIL EXHAUST PIPE ASSEMBLY | 17430 | - | - | - |
| 4 | INSPECT FOR EXHAUST GAS LEAK | - | - | - | See step 4 |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | For use with SST | - | - |
