COMPONENTS (INSTALLATION)

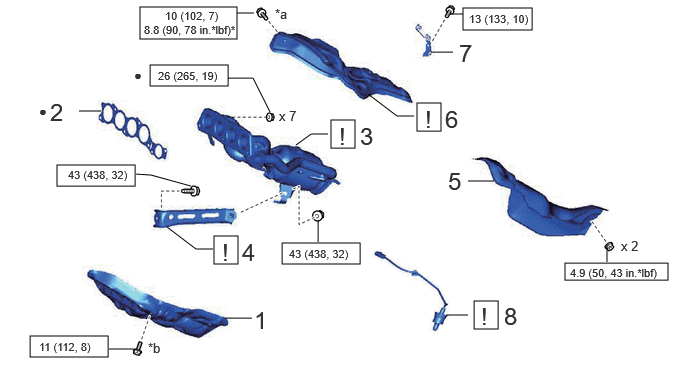

Fig 1: Exhaust Manifold Installation Components With Torque Specifications [03/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	NO. 2 EXHAUST MANIFOLD HEAT INSULATOR	17168	-	-	-
2	EXHAUST MANIFOLD TO HEAD GASKET	17173	-	-	-
3	EXHAUST MANIFOLD (TWC: Front Catalyst)	17141	See step 3	-	-
4	MANIFOLD STAY	17118	See step 4	-	-
5	NO. 1 FRONT FLOOR HEAT INSULATOR	58151	-	-	-
6	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	17167	See step 6	-	-
7	WIRE HARNESS CLAMP BRACKET	82715	-	-	-
8	AIR FUEL RATIO SENSOR (for Sensor 1)	89467B	See step 8	-	-

*a	Type A: x 3 Type B: x 5	*b	Type A: x 3 Type B: x 6
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-

Fig 2: Exhaust Manifold Installation Components With Torque Specifications [03/2022 - ] (2 Of 2)

Callout - Procedure		Part Name Code
9	COWL VENTILATOR PANEL SUB-ASSEMBLY	55704B	-	-	-
10	COWL VENTILATOR SPLASH SHIELD	55752A	-	-	-
11	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-	-	-
12	FRONT FENDER HOOD SEAL RH	53388D	-	-	-
13	FRONT FENDER HOOD SEAL LH	53389B	-	-	-
14	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	17410	-	-	-
15	INSPECT FOR EXHAUST GAS LEAK	-	-	-	See step 15
16	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

•

Non-reusable part
