COMPONENTS (INSTALLATION)

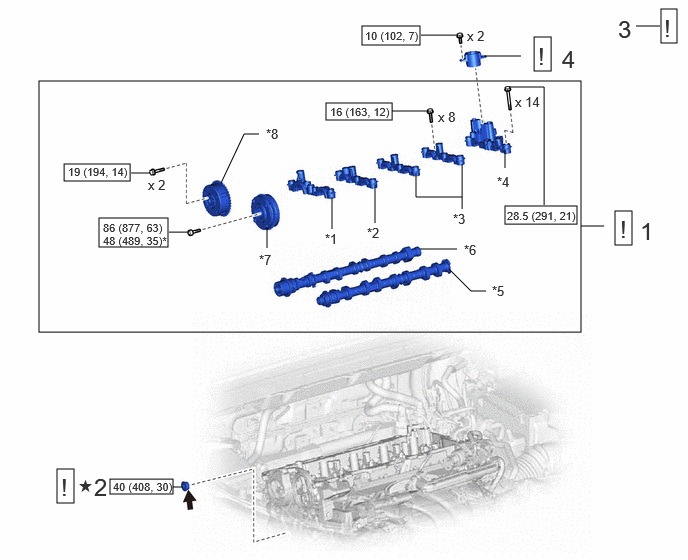

Fig 1: Camshaft Installation Components With Torque Specifications [11/2021 - 03/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	CAMSHAFT	-	See step 1	-	-
2	STRAIGHT SCREW PLUG	-	See step 2	-	-
3	SET NO. 1 CYLINDER TO TDC (COMPRESSION)	-	See step 3	-	-
4	FUEL PUMP LIFTER GUIDE	23477	See step 4	-	-

*1	NO. 1 CAMSHAFT BEARING CAP	*2	NO. 2 CAMSHAFT BEARING CAP
*3	NO. 3 CAMSHAFT BEARING CAP	*4	NO. 4 CAMSHAFT BEARING CAP
*5	CAMSHAFT	*6	NO. 2 CAMSHAFT
*7	CAMSHAFT TIMING GEAR ASSEMBLY	*8	CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
	Adhesive 1324	*	Precoated part

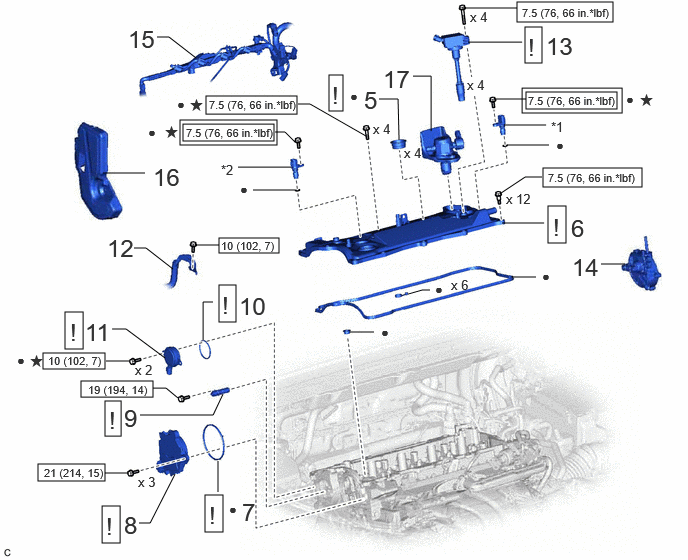

Fig 2: Camshaft Installation Components With Torque Specifications [11/2021 - 03/2022] (2 Of 2)

Callout - Procedure		Part Name Code
5	SPARK PLUG TUBE GASKET	11193	See step 5	-	-
6	CYLINDER HEAD COVER SUB-ASSEMBLY	11201	See step 6	-	-
7	CAM TIMING CONTROL MOTOR O-RING	13090E	See step 7	-	-
8	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY	13090D	See step 8	-	-
9	CAMSHAFT TIMING VALVE ASSEMBLY	135A0B	See step 9	-	-
10	CAM TIMING OIL CONTROL SOLENOID O-RING	15370A	See step 10	-	-
11	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	15370	See step 11	-	-
12	NO. 2 EARTH WIRE	82286A	-	-	-
13	IGNITION COIL ASSEMBLY	19500	See step 13	-	-
14	VACUUM PUMP ASSEMBLY	29300	-	-	-
15	ENGINE WIRE	82121	-	-	-
16	NO. 2 ENGINE COVER	12602C	-	-	-
17	FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY	23100X	-	-	-

*1	CAMSHAFT POSITION SENSOR (for Intake Side)	*2	CAMSHAFT POSITION SENSOR (for Exhaust Side)
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	*	Precoated part
