DTC P0115-15: Engine Coolant Temperature Sensor 1 Circuit Short to Battery or Open [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
- READ VALUE USING GTS (CHECK FOR OPEN IN WIRE HARNESS)

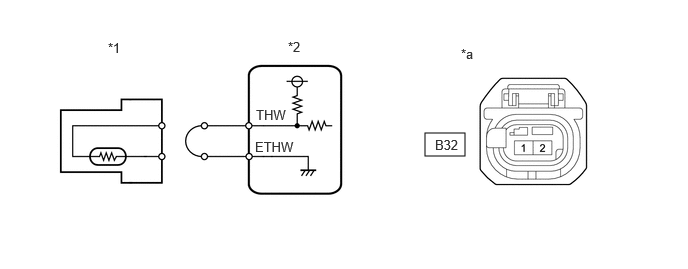

*1 Engine Coolant Temperature Sensor (for Outlet Side) *2 ECM *a Front view of wire harness connector
(to Engine Coolant Temperature Sensor (for Outlet Side))- - - Disconnect the engine coolant temperature sensor (for outlet side) connector.
- Connect terminals 1 and 2 of the engine coolant temperature sensor (for outlet side) connector on the wire harness side.
- According to the display on the GTS, read the Data List.
Powertrain > Engine > Data List
Tester Display Coolant Temperature OK
GTS Display Specified Condition Coolant Temperature Higher than 135°C (275°F) HINT:
Perform "Inspection After Repair" after replacing the engine coolant temperature sensor (for outlet side).
Refer to INITIALIZATION [11/2021 - ]
Result
Proceed to OK NG
Result:
OK
REPLACE ENGINE COOLANT TEMPERATURE SENSOR (FOR OUTLET SIDE). Refer to REMOVAL [11/2021 - ]
Result:
NG
See step 2
- CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR (FOR OUTLET SIDE) - ECM)
- Disconnect the engine coolant temperature sensor (for outlet side) connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition B32-2 - B49-80 (THW) Always Below 1 Ω B32-1 - B49-81 (ETHW) Always Below 1 Ω B32-2 or B49-80 (THW) - Other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM. Refer to REMOVAL [11/2021 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
