Installation [11/2021 - 03/2023]: Procedure
- INSTALL HOLE PLUG
- INSTALL DIFFERENTIAL MOUNT CUSHION

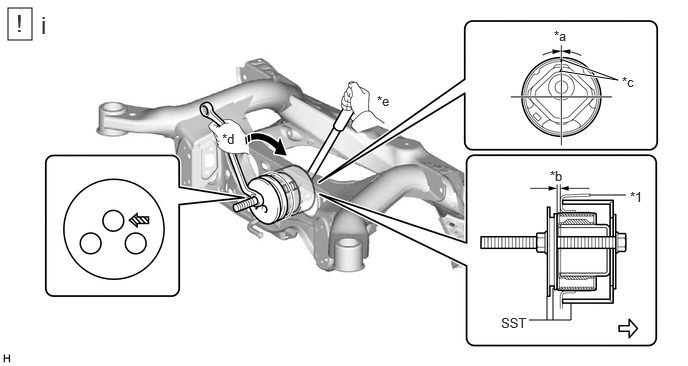

*1 Rear Suspension Member Sub-assembly - - *a -3° to 3° *b 3.1 to 4.1 mm (0.122 to 0.161 in.) *c Protrusion *d Turn *e Hold - - Turning Direction Front of Vehicle SST Bolt Position - - - Using SST, install a new differential mount cushion to the rear suspension member sub-assembly from the rear of the vehicle as shown in the illustration.
- SST: 09316-12010
- SST: 09570-24011
NOTE:- Install the differential mount cushion so that the protrusion is positioned as shown in the illustration.
- Make sure that the differential mount cushion is aligned within 3° from the center.
- Temporarily install the differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
- Before using SST, apply grease to SST bolt.
- Be sure to use the correct combination of SST.
- Make sure that SST contacts the entire circumference of the differential mount cushion.
- Do not tilt the SST bolt.
- Using SST, install a new differential mount cushion to the rear suspension member sub-assembly from the rear of the vehicle as shown in the illustration.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

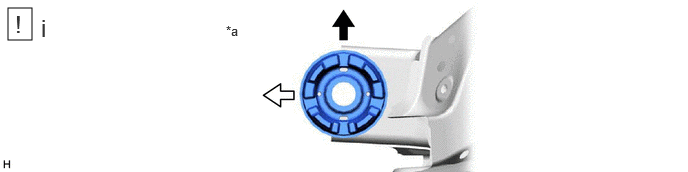

*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.NOTE:
- Position the rear suspension member front body mounting cushion in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member front body mounting cushion.
- Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
- INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

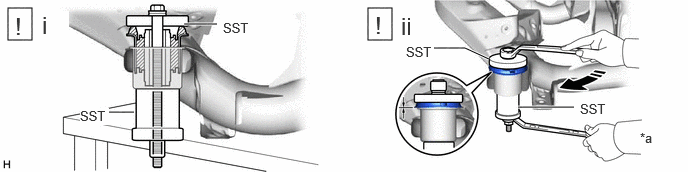

*a Hold - - Turn - - - Install SST as shown in the illustration.
- SST: 09570-24011
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01040
- 09830-01050
NOTE:Apply molybdenum grease to the threads and tip of the SST center bolt before use.
- Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
- SST: 09570-24011
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01040
- 09830-01050
NOTE:If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.
- Install SST as shown in the illustration.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH

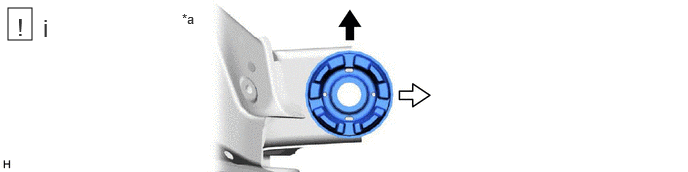

*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.NOTE:
- Position the rear suspension member front body mounting cushion in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member front body mounting cushion.
- Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
- INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.NOTE:
- Position the rear suspension member rear body mount cushion LH in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member rear body mount cushion LH.
- Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.
- INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

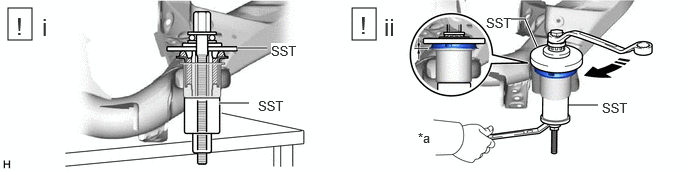

*a Hold - - Turn - - - Install SST as shown in the illustration.
- SST: 09710-28031
- 09711-02030
- 09711-02040
- 94622-51200
- SST: 09950-60021
- 09951-00720
- 09951-00890
NOTE:Apply molybdenum grease to the threads and tip of the SST center bolt before use.
- SST: 09710-28031
- Using SST, install the rear suspension member rear body mount cushion LH until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mount cushion LH.
- SST: 09710-28031
- 09711-02030
- 09711-02040
- 94622-51200
- SST: 09950-60021
- 09951-00720
- 09951-00890
NOTE:If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.
- SST: 09710-28031
- Install SST as shown in the illustration.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.NOTE:
- Position the rear suspension member rear body mount cushion RH in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member rear body mount cushion RH.
- Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.
- INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
- INSTALL DIFFERENTIAL SUPPORT MEMBER CUSHION
- INSTALL REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY
Refer to PROCEDURE - Step 4 - INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
Refer to PROCEDURE - Step 1 - INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
- INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

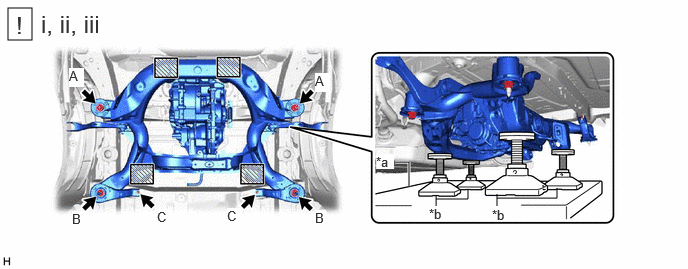

*a Engine Lifter *b Attachment Attachment and Wooden Block Placement Location - - - Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.WARNING:
- The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
- If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
NOTE:- Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.
- Keep supporting the rear suspension member sub-assembly until the installation has been completed.
- Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.
- Install the rear suspension member sub-assembly with the 2 rear suspension member lower stoppers, rear suspension member lower brace LH and rear suspension member lower brace RH, 2 bolts and 4 nuts.
Bolt A
Torque: 158 N.m (1611 kgf/cm, 117 ft.lbf)
Nut B
Torque: 158 N.m (1611 kgf/cm, 117 ft.lbf)
Nut C
Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)
- Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
- INSTALL FRAME WIRE
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSTALL FLOOR UNDER WIRE WARNING:
Be sure to wear insulated gloves.

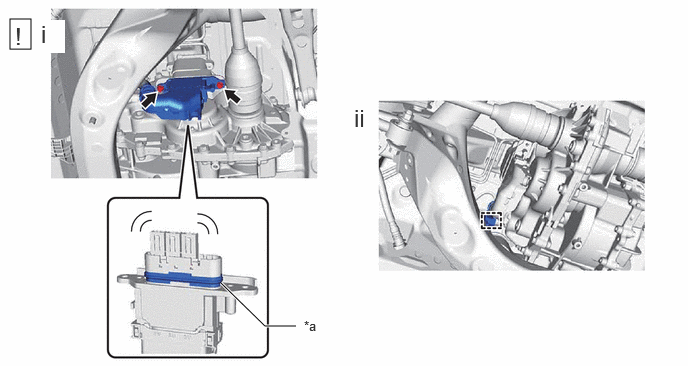

*a Waterproof Seal - - - Install the HV floor under wire to the rear traction motor with transaxle assembly with the 2 bolts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
NOTE:- Make sure that the connector is fully engaged.
- Do not damage the terminals, interlock connector or rear traction motor with transaxle assembly during installation.
- Do not touch the waterproof seal or terminals of the connector.
- Do not allow any foreign matter or water to enter the rear traction motor with transaxle assembly.
- Although the connector may feel loose, this is not due to a malfunction.
- Engage the clamp.
- Install the HV floor under wire to the rear traction motor with transaxle assembly with the 2 bolts.
- TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
Refer to PROCEDURE - Step 2 - TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
- INSTALL REAR STABILIZER BAR
See step 6 - INSTALL REAR DRIVE SHAFT ASSEMBLY LH
Refer to INSTALLATION [11/2021 - 03/2024]
- INSTALL REAR DRIVE SHAFT ASSEMBLY RH
- INSTALL TAIL EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 FLOOR UNDER COVER
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
- INSTALL SERVICE PLUG GRIP
Refer to INSTALLATION [11/2021 - ]
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [11/2021 - ]
- PERFORM INITIALIZATION
Parking Assist Monitor System Refer to CALIBRATION [11/2021 - ] Panoramic View Monitor System Refer to CALIBRATION [11/2021 - 03/2024] Advanced Park Refer to CALIBRATION [11/2021 - 03/2024] Lighting System (w/ Automatic Headlight Beam Level Control System) Refer to INITIALIZATION [11/2021 - 03/2022] , or refer to INITIALIZATION [03/2022 - ]
