Caution / Notice / Hint

COMPONENTS (INSTALLATION)

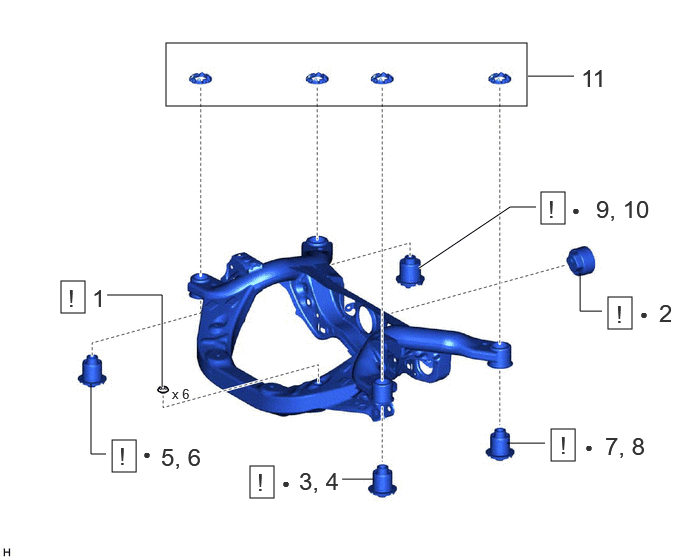

Fig 1: Rear Suspension Member (For HEV Model AWD) Installation Components [11/2021 - 03/2023] (1 Of 6)
GTY1062670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 HOLE PLUG - See step  1 - -
2 DIFFERENTIAL MOUNT CUSHION 41651G See step  2 - -
3 TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH 52272A See step  3 - -
4 INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH 52272A See step  4 - -
5 TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH 52271E See step  5 - -
6 INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH 52271E - - -
7 TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH 52276A See step  7 - -
8 INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH 52276A See step  8 - -
9 TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH 52275B See step  9 - -
10 INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH 52275B - - -
11 DIFFERENTIAL SUPPORT MEMBER CUSHION 52281 - - -
• Non-reusable part - -

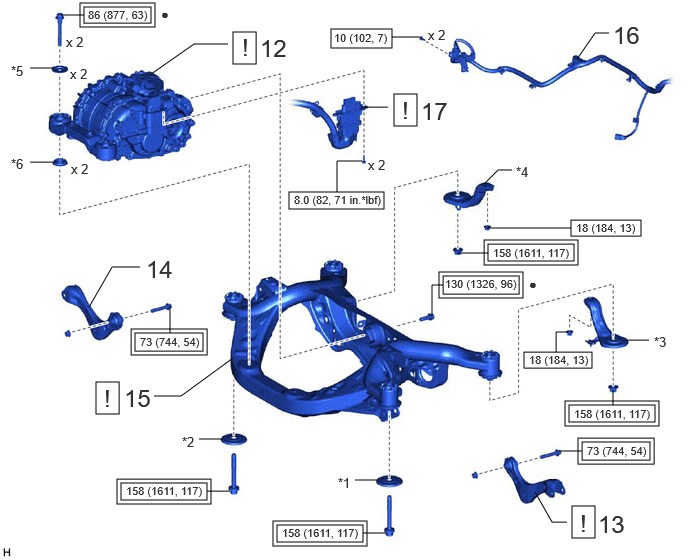

Fig 2: Rear Suspension Member (For HEV Model AWD) Installation Components With Torque Specifications [11/2021 - 03/2023] (2 Of 6)
GTY1061846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
12 REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY G1050 See step  12 - -
13 REAR UPPER CONTROL ARM ASSEMBLY LH 48790 See step  13 - -
14 REAR UPPER CONTROL ARM ASSEMBLY RH 48770A - - -
15 REAR SUSPENSION MEMBER SUB-ASSEMBLY 51206A See step  15 - -
16 FRAME WIRE 82164 - - -
17 FLOOR UNDER WIRE 821H1 See step  17 - -
*1 REAR LOWER SUSPENSION MEMBER STOPPER LH *2 REAR LOWER SUSPENSION MEMBER STOPPER RH
*3 REAR SUSPENSION ARM BRACKET SUB-ASSEMBLY LH *4 REAR SUSPENSION ARM BRACKET SUB-ASSEMBLY RH
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -

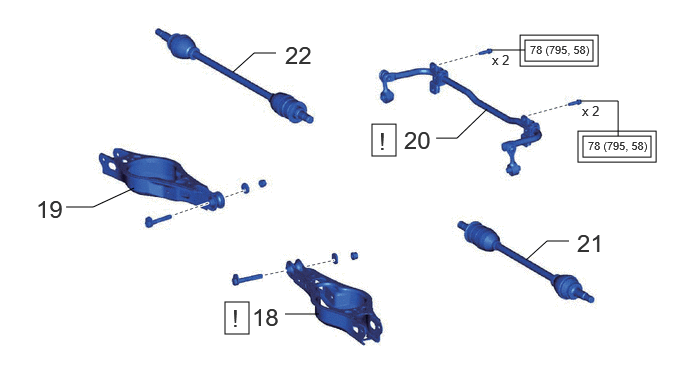

Fig 3: Rear Suspension Member (For HEV Model AWD) Installation Components With Torque Specifications [11/2021 - 03/2023] (3 Of 6)
GTY1062442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
18 REAR NO. 2 SUSPENSION ARM ASSEMBLY LH 48740F See step  18 - -
19 REAR NO. 2 SUSPENSION ARM ASSEMBLY RH 48730F - - -
20 REAR STABILIZER BAR 48812 See step  20 - -
21 REAR DRIVE SHAFT ASSEMBLY LH 42340B - - -
22 REAR DRIVE SHAFT ASSEMBLY RH 42330 - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -
Fig 4: Rear Suspension Member (For HEV Model AWD) Installation Components With Torque Specifications [11/2021 - 03/2023] (4 Of 6)
GTY1064972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
23 TAIL EXHAUST PIPE ASSEMBLY 17430 - - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

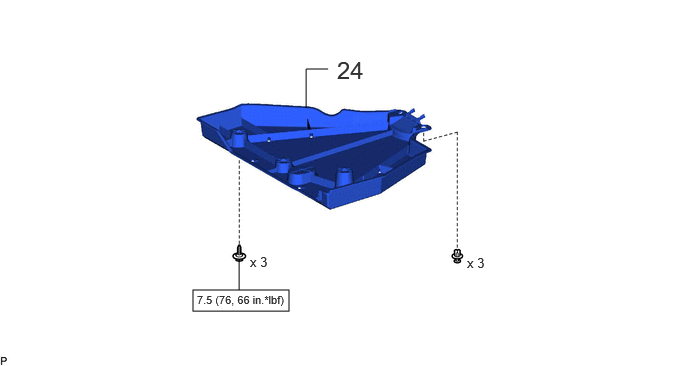

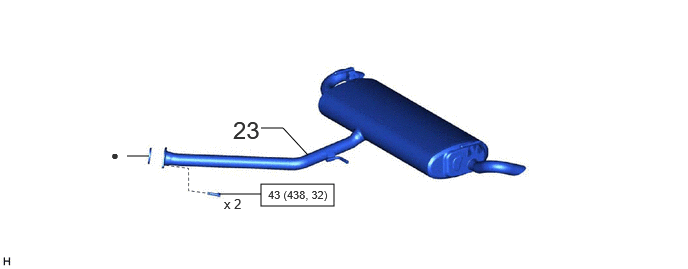

Fig 5: Rear Suspension Member (For HEV Model AWD) Installation Components With Torque Specifications [11/2021 - 03/2023] (5 Of 6)
GTY1060007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
24 NO. 1 FLOOR UNDER COVER 58398F - - -
N.m (kgf/cm, ft.lbf): Specified torque - -

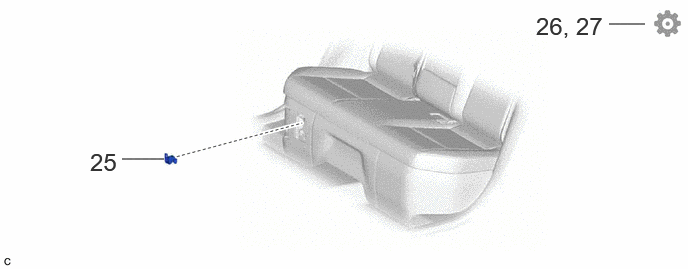

Fig 6: Rear Suspension Member (For HEV Model AWD) Installation Components [11/2021 - 03/2023] (6 Of 6)
GTY1080550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
25 SERVICE PLUG GRIP G3834 - - -
26 INSPECT AND ADJUST REAR WHEEL ALIGNMENT - - - See step  26
27 PERFORM INITIALIZATION - - - See step  27
