Removal [11/2021 - 03/2024]: Procedure

REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for Gasoline Model)
for A25A-FKS: Refer to PROCEDURE - Step 1

for T24A-FTS: Refer to PROCEDURE - Step 1
REMOVE FRONT SUSPENSION MEMBER DYNAMIC DAMPER (for T24A-FTS LH Side)
Refer to PROCEDURE - Step 14 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 14 [03/2023 - 03/2024]
REMOVE FRONT FLOOR COVER LH (for Gasoline Model LH Side)

for A25A-FKS: Refer to PROCEDURE - Step 5
for T24A-FTS: Refer to PROCEDURE - Step 6
REMOVE NO. 2 FLOOR UNDER COVER (for Gasoline Model LH Side)

for A25A-FKS: Refer to PROCEDURE - Step 6
for T24A-FTS: Refer to PROCEDURE - Step 7
REMOVE FRONT FLOOR COVER RH (for Gasoline Model RH Side)

for A25A-FKS: Refer to PROCEDURE - Step 7
for T24A-FTS: Refer to PROCEDURE - Step 8
REMOVE NO. 1 FLOOR UNDER COVER (for Gasoline Model RH Side)

for A25A-FKS: Refer to PROCEDURE - Step 8
for T24A-FTS: Refer to PROCEDURE - Step 9
REMOVE REAR WHEEL
Refer to REMOVAL [11/2021 - 03/2024]
REMOVE NO. 1 LOWER CONTROL ARM COVER
See step 2

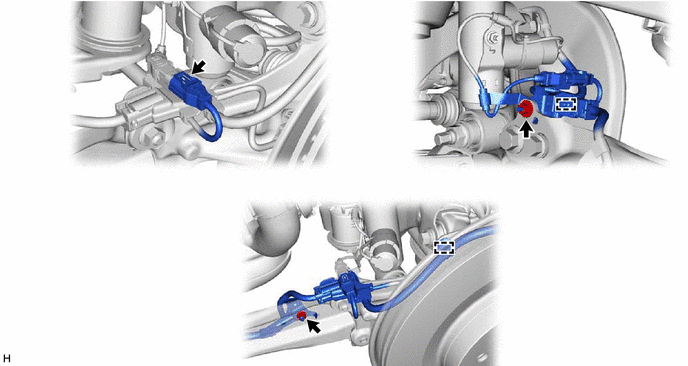

SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/o AVS)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

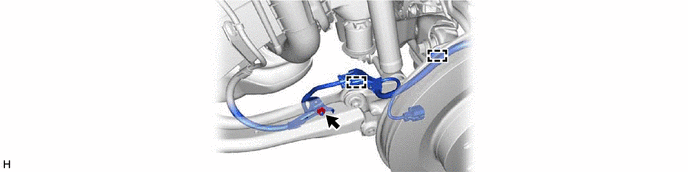

SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/ AVS)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

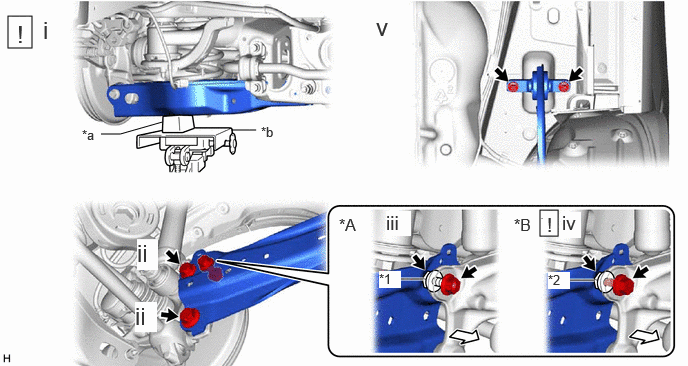

REMOVE REAR TRAILING ARM ASSEMBLY

Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
NOTE:
- When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.
Remove the 2 bolts.
for Nut Connection Type:
1. Remove the bolt, nut and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.
for Bolt Connection Type:
1. Remove the bolt, nut and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.

NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
Remove the 2 bolts and rear trailing arm assembly.
