Caution / Notice / Hint

NOTE:

After replacing the combination meter assembly, make sure to perform update ECU security key.
After replacing the combination meter assembly, make sure to perform software update.

COMPONENTS (INSTALLATION)

Fig 1: Combination Meter Installation Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	COMBINATION METER ASSEMBLY	83100	-	-	-

INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

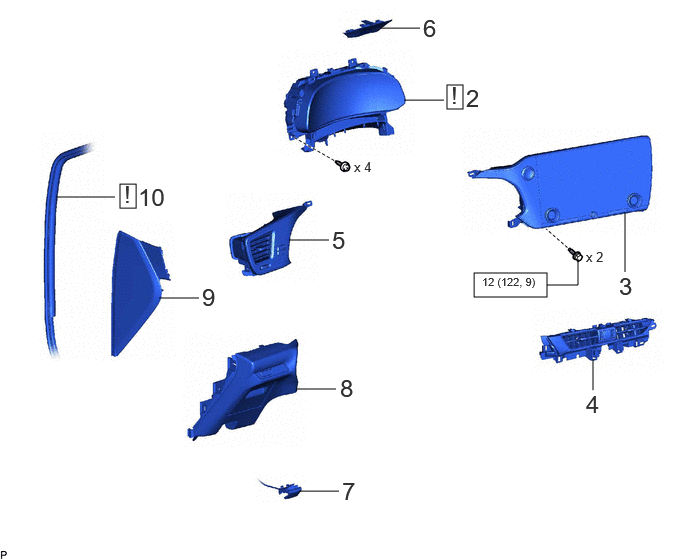

Fig 2: Combination Meter Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
2	COMBINATION METER ASSEMBLY WITH INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	-	See step 2	-	-
3	RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET	-	-	-	-
4	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY	55670A	-	-	-
5	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY	55650	-	-	-
6	METER HOOD SUB-ASSEMBLY	55403	-	-	-
7	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
8	LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY	-	-	-	-
9	NO. 1 INSTRUMENT SIDE PANEL	55317E	-	-	-
10	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	See step 10	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

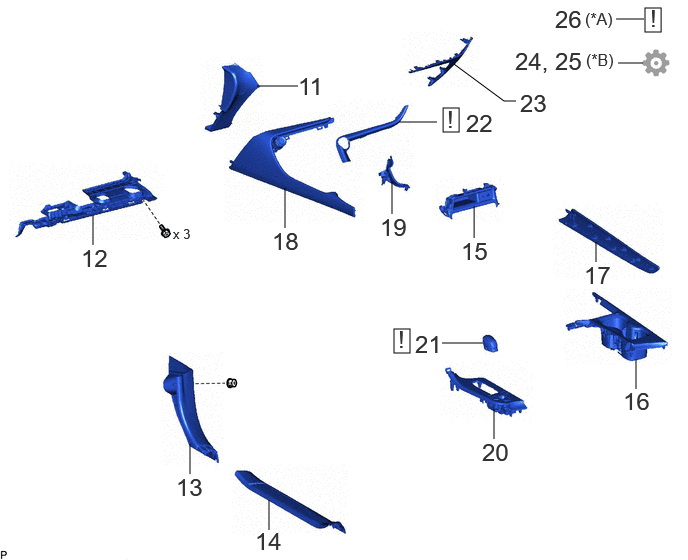

Fig 3: Combination Meter Installation Components (3 Of 3)

Callout - Procedure		Part Name Code
11	INSTRUMENT PANEL FINISH PANEL	55431A	-	-	-
12	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
13	COWL SIDE TRIM SUB-ASSEMBLY LH	62112A	-	-	-
14	DOOR SCUFF PLATE ASSEMBLY LH	67920	-	-	-
15	CONSOLE PANEL	58821A	-	-	-
16	UPPER REAR CONSOLE PANEL SUB-ASSEMBLY	58805C	-	-	-
17	NO. 1 CONSOLE UPPER PANEL GARNISH	58833B	-	-	-
18	NO. 2 CONSOLE UPPER PANEL GARNISH	58834B	-	-	-
19	CONSOLE BOX HOLE COVER	58839A	-	-	-
20	SHIFTING HOLE COVER ASSEMBLY	58840K	-	-	-
21	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	See step 21	-	-
22	UPPER CONSOLE PANEL SUB-ASSEMBLY	58804A	See step 22	-	-
23	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
24	UPDATE ECU SECURITY KEY	-	-	-	See step 24
25	PERFORM REGISTRATION	-	-	-	See step 25
26	CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM	-	See step 26	-	-

for Power Tilt and Power Telescopic Steering Column

w/ Headup Display
