Home >> Lexus >> 2025 >> NX 250 FWD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System - Diagnostic Codes (4 Of 4) & Symptom Tests >> Airbag System >> DTC B00B5-13: Driver Seat Track Position Restraints Sensor Circuit Open [11/2021 - ] >> Wiring Diagram

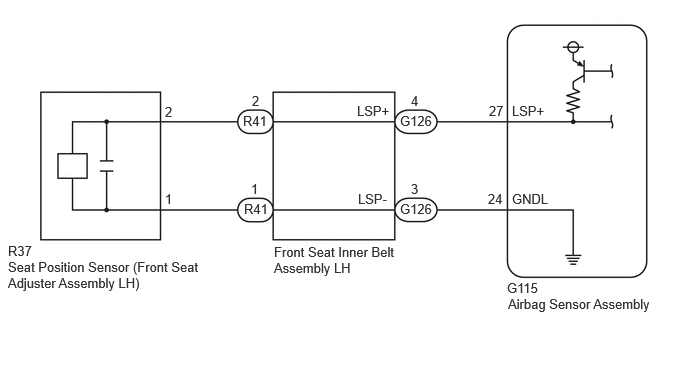

DTC B00B5-13: Driver Seat Track Position Restraints Sensor Circuit Open [11/2021 - ]: Wiring Diagram

GTY1054300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
