Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:
    • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

      Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]

    • When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
    • After replacing the auxiliary battery, install the ventilation hole plug supplied with the new auxiliary battery or the ventilation hole plug from the old auxiliary battery to the ventilation hole on the side to which the battery hose is not connected.

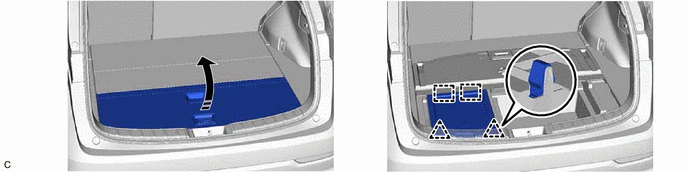

  2. REMOVE BATTERY SERVICE COVER PLATE
    1. GTY1076004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

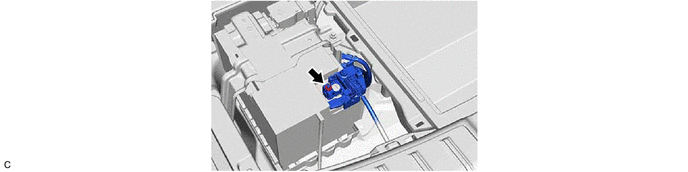

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. GTY1075179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

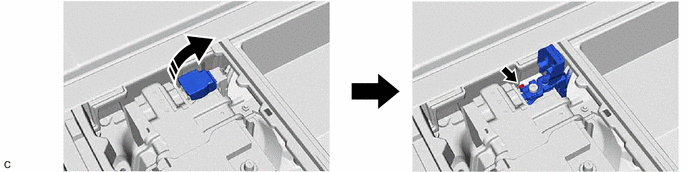

  4. DISCONNECT CABLE FROM POSITIVE AUXILIARY BATTERY TERMINAL
    1. GTY1075181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

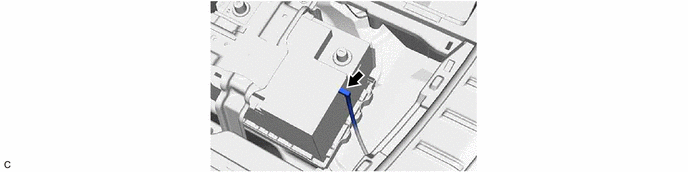

  5. REMOVE BATTERY HOSE
    1. GTY1075183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

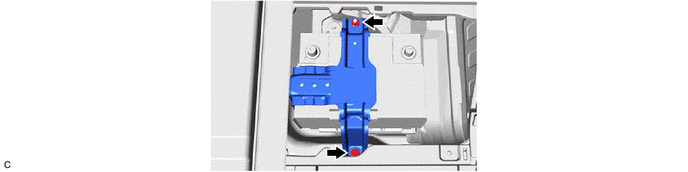

  6. REMOVE BATTERY CLAMP
    1. GTY1075185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

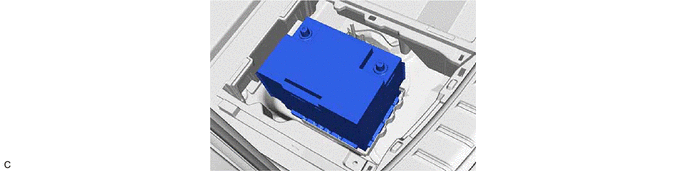

  7. REMOVE AUXILIARY BATTERY
    1. GTY1075996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
