COMPONENTS (INSTALLATION)

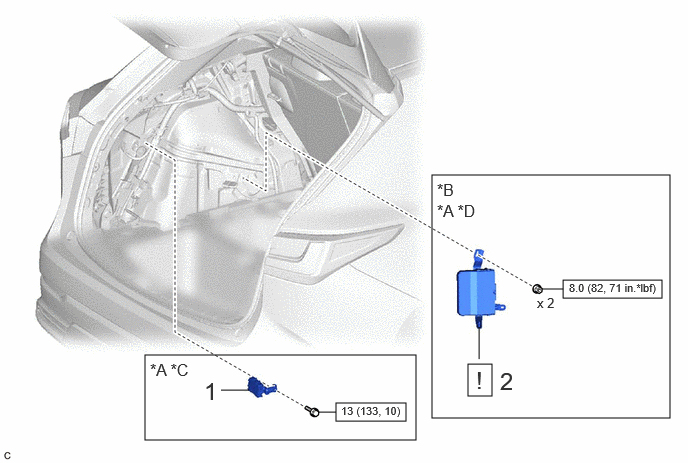

Fig 1: 4WD Control ECU Installation Components With Torque Specifications [11/2021 - 03/2024] (1 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | 4WD ECU ASSEMBLY | 89630A | - | - | - |
| 2 | 4WD ECU ASSEMBLY | 89630A | See step 2 | - | - |
| *A | for A25A-FKS | *B | for T24A-FTS |
| *C | Type A | *D | Type B |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

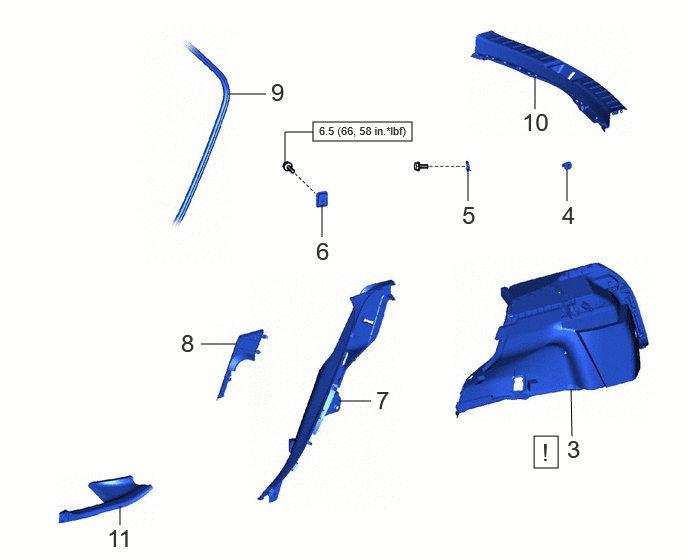

Fig 2: 4WD Control ECU Installation Components With Torque Specifications [11/2021 - 03/2024] (2 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | See step 3 | - | - |
| 4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | 64725F | - | - | - |
| 5 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 6 | ROPE HOOK ASSEMBLY | 66310H | - | - | - |
| 7 | REAR SEAT SIDE GARNISH LH | 62552F | - | - | - |
| 8 | NO. 1 SIDE TRIM BASE COVER LH | 62525D | - | - | - |
| 9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | 62332A | - | - | - |
| 10 | REAR FLOOR FINISH PLATE | 58387B | - | - | - |
| 11 | REAR DOOR SCUFF PLATE LH | 67918A | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 12 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 13 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 14 | REAR FLOOR BOARD REAR LH | 58418H | - | - | - |
| 15 | REAR FLOOR BOARD REAR RH | 58417B | - | - | - |
| 16 | REAR DECK FLOOR BOX | 64993 | - | - | - |
| 17 | REAR SEAT ASSEMBLY | - | - | - | - |
| 18 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 19 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 20 | OPERATION WHEN REPLACING ECU | - | - | - | See step 20 |
| *A | w/o Spare Tire | *B | w/ Spare Tire |
| *C | for T24A-FTS | - | - |
