COMPONENTS (INSTALLATION)

Fig 1: 4WD Control ECU Installation Components With Torque Specifications [03/2024 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	4WD ECU ASSEMBLY	89630A	See step 1	-	-

N.m (kgf/cm, ft.lbf): Specified torque

Fig 2: 4WD Control ECU Installation Components With Torque Specifications [03/2024 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
2	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	See step 2	-	-
3	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	-	-	-
4	LUGGAGE HOLD BELT STRIKER ASSEMBLY	58460D	-	-	-
5	ROPE HOOK ASSEMBLY	66310H	-	-	-
6	REAR SEAT SIDE GARNISH LH	62552F	-	-	-
7	NO. 1 SIDE TRIM BASE COVER LH	62525D	-	-	-
8	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332A	-	-	-
9	REAR FLOOR FINISH PLATE	58387B	-	-	-
10	REAR DOOR SCUFF PLATE LH	67918A	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

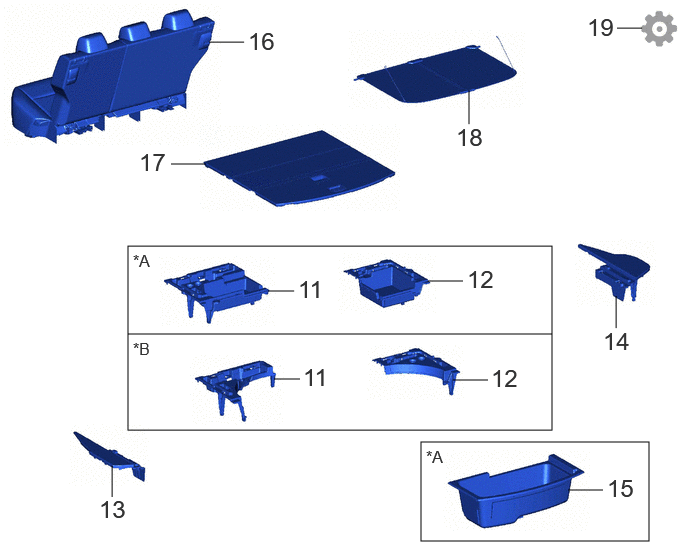

Fig 3: 4WD Control ECU Installation Components [03/2024 - ] (3 Of 3)

Callout - Procedure		Part Name Code
11	DECK FLOOR BOX LH	64997	-	-	-
12	DECK FLOOR BOX RH	64995	-	-	-
13	REAR FLOOR BOARD REAR LH	58418H	-	-	-
14	REAR FLOOR BOARD REAR RH	58417B	-	-	-
15	REAR DECK FLOOR BOX	64993	-	-	-
16	REAR SEAT ASSEMBLY	-	-	-	-
17	DECK BOARD ASSEMBLY	58410B	-	-	-
18	TONNEAU COVER ASSEMBLY	64910J	-	-	-
19	OPERATION WHEN REPLACING ECU	-	-	-	See step 19

w/o Spare Tire

w/ Spare Tire
