Section 8 (Electronically Controlled Brake System - Diagnostics - Introduction (1 Of 2))
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)
>>

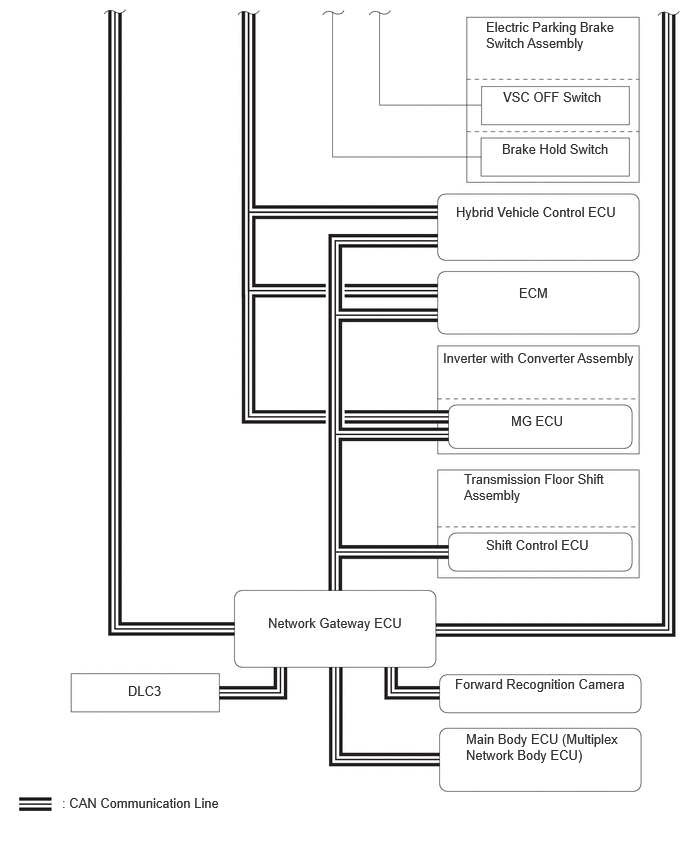

System Diagram [11/2021 - ]
>>

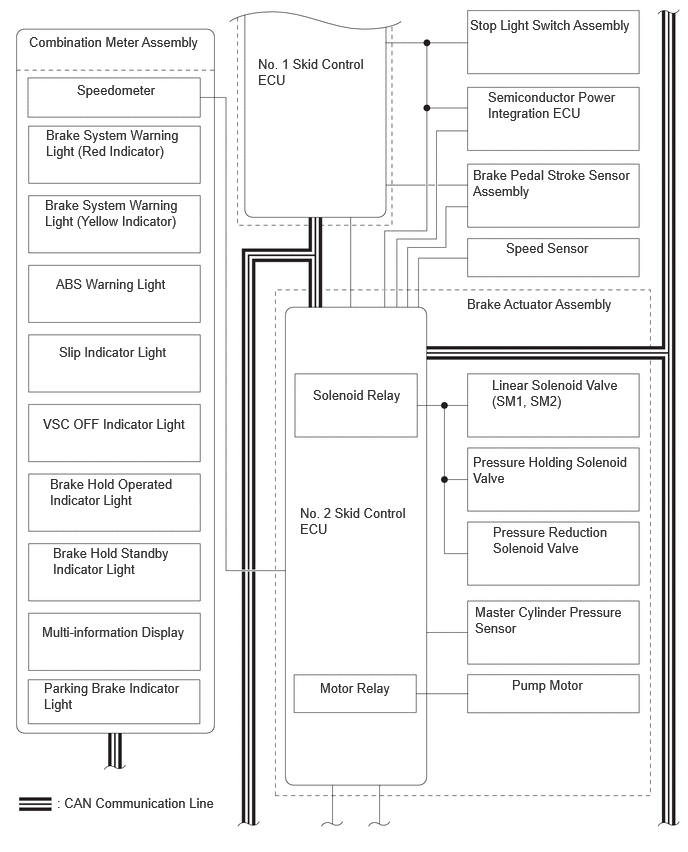

System Diagram [11/2021 - ]

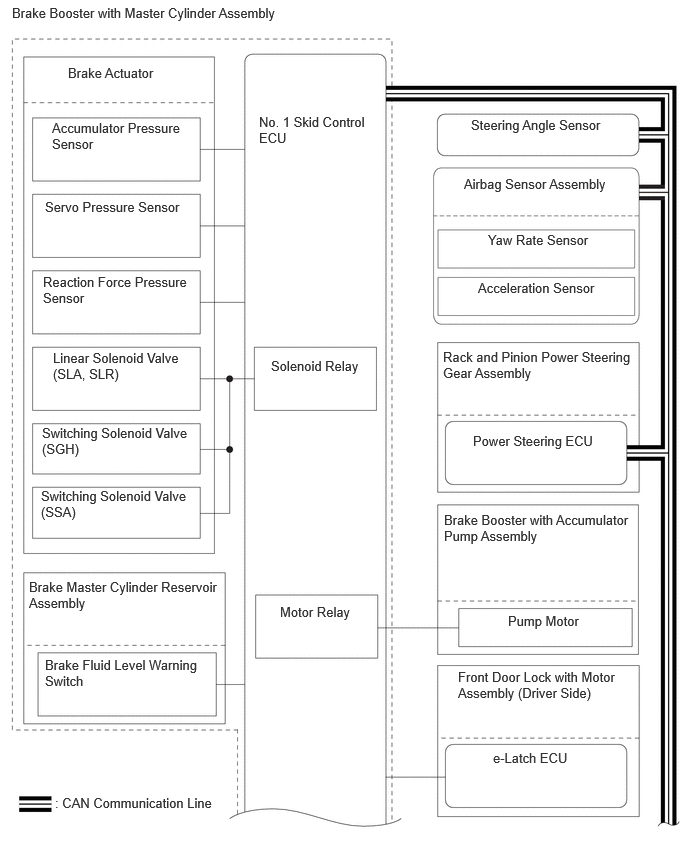

System Diagram [11/2021 - ]
