  1. INSPECT HV BATTERY JUNCTION BLOCK ASSEMBLY
    1. Inspect SMRB:
      1. Measure the resistance according to the value(s) in the table below.

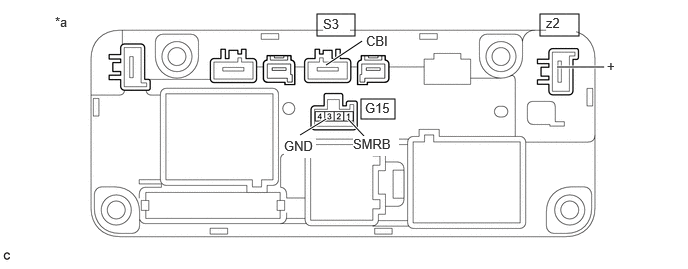

        GTY1059612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (HV Battery Junction Block Assembly)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        z2-1 (+) - S3-1 (CBI) Auxiliary battery voltage not applied between terminals G15-1 (SMRB) and G15-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals G15-1 (SMRB) and G15-3 (GND) Below 1 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        G15-1 (SMRB) - G15-3 (GND) -40 to 80°C (-40 to 176°F) 19.0 to 59.0 Ω

        If the result is not as specified, replace the HV battery junction block assembly.

    2. Inspect SMRG:
      1. Measure the resistance according to the value(s) in the table below.

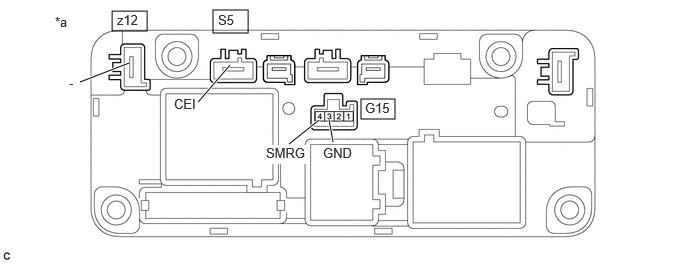

        GTY1059611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (HV Battery Junction Block Assembly)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        z12-1 (-) - S5-1 (CEI) Auxiliary battery voltage not applied between terminals G15-4 (SMRG) and G15-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals G15-4 (SMRG) and G15-3 (GND) Below 1 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        G15-4 (SMRG) - G15-3 (GND) -40 to 80°C (-40 to 176°F) 19.0 to 59.0 Ω

        If the result is not as specified, replace the HV battery junction block assembly.

    3. Inspect SMRP:
      1. Measure the resistance according to the value(s) in the table below.

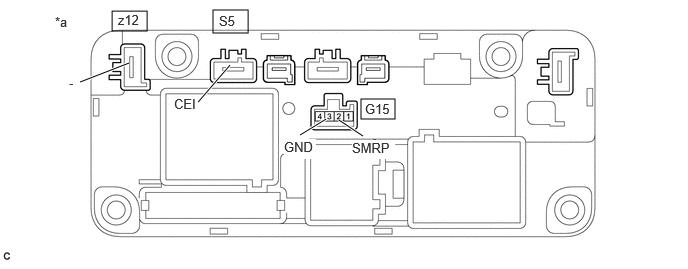

        GTY1059608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (HV Battery Junction Block Assembly)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        z12-1 (-) - S5-1 (CEI) Auxiliary battery voltage not applied between terminals G15-2 (SMRP) and G15-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals G15-2 (SMRP) and G15-3 (GND) 24.3 to 29.7 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        G15-2 (SMRP) - G15-3 (GND) -40 to 80°C (-40 to 176°F) 140 to 290 Ω

        If the result is not as specified, replace the HV battery junction block assembly.
