Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING GTS
    1. GTY1075510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Read the Data List.

        Powertrain > HV Battery > Data List

        Tester Display
        Hybrid Battery Temperature 1
        Hybrid Battery Temperature 2
        Hybrid Battery Temperature 3
        Hybrid Battery Temperature 4
        Hybrid Battery Temperature 5
        Hybrid Battery Temperature 6
        NOTE:

        If any of the temperatures listed in "Hybrid Battery Temperature 1 to 6" are 50°C or more, leave the vehicle until the temperature drops to less than 50°C.

  2. REMOVE HV BATTERY

    Refer to PROCEDURE - Step 20

  3. REMOVE UPPER HV BATTERY COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 23
  4. REMOVE NO. 1 HV BATTERY HOSE
    Refer to PROCEDURE - Step 24
  5. REMOVE BATTERY ECU ASSEMBLY
    Refer to PROCEDURE - Step 25
  6. REMOVE HV BATTERY JUNCTION BLOCK ASSEMBLY
    See step  21
  7. REMOVE HYBRID BATTERY TERMINAL BLOCK
    See step  22
  8. REMOVE NO. 2 HYBRID BATTERY SHIELD SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

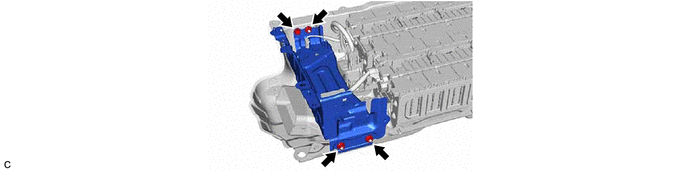

    1. GTY1074542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 HV BATTERY COVER INTAKE DUCT
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

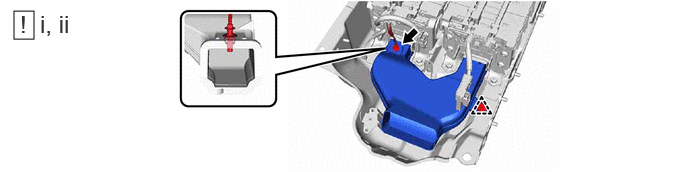

    1. GTY1080400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clip to disconnect the No. 1 HV battery cover intake duct from the HV battery.
      2. Disengage the claw of hybrid battery thermistor (sensor portion) and remove the No. 1 HV battery cover intake duct.
  10. REMOVE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    NOTE:

    Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

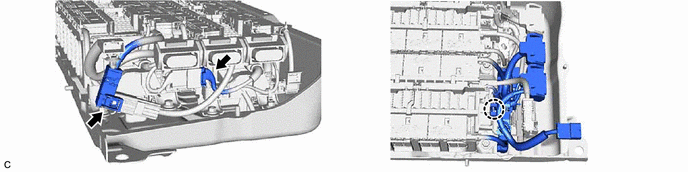

    1. GTY1074539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY998849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.
    1. GTY1074538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY998847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. PERFORM RECOVERY INSPECTION
    NOTE:

    Before returning the HV supply stack sub-assembly, make sure to perform a recovery inspection.

    Refer to RECOVERY INSPECTION [11/2021 - ]
