Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]

    Refer to PRECAUTION [11/2021 - ]

  2. REMOVE SERVICE PLUG GRIP

    See step  5

  3. REMOVE NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 8

  4. DISCONNECT ENGINE ROOM MAIN WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.
    1. GTY1078733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Move the lock lever as shown in the illustration and disconnect the inverter with converter assembly connector.
        NOTE:
        • Do not touch the waterproof seal or terminals of the connector.
        • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
        • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
        • Insulate the disconnected terminals with insulating tape.
  5. REMOVE CONNECTOR COVER ASSEMBLY
    Refer to PROCEDURE - Step 10
  6. CHECK TERMINAL VOLTAGE
    Refer to PROCEDURE - Step 11
  7. TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY
    Refer to PROCEDURE - Step 12
  8. DISCONNECT FLOOR UNDER WIRE
    Refer to PROCEDURE - Step 13
  9. REMOVE REAR SEAT ASSEMBLY
  10. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 7

  11. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 8

  12. REMOVE JUNCTION BLOCK SERVICE COVER

    Refer to PROCEDURE - Step 9

  13. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 11

  14. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 21

  15. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 23

  16. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure as for the LH side.
  17. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
    1. Use the same procedure as for the No. 3 battery service cover board.
  18. REMOVE BATTERY SERVICE COVER BOARD

    See step  7

  19. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  8

  20. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 34

  21. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 24

  22. REMOVE NO. 1 SIDE TRIM BASE COVER RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 35

  23. REMOVE REAR SEAT SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

      Refer to PROCEDURE - Step 37

  24. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 39
  25. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 40

  26. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    Refer to PROCEDURE - Step 41
  27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    Refer to PROCEDURE - Step 43
  28. REMOVE NO. 1 HV BATTERY COVER PANEL RH
    Refer to PROCEDURE - Step 12
  29. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

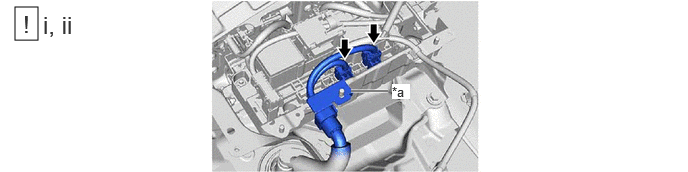

    1. GTY1080349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Shield Ground - -
      1. Disconnect the 2 HV battery junction block assembly connectors.
        NOTE:

        Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

      2. Disconnect the shield ground from the HV battery.
    2. GTY1078747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT FLOOR COVER RH
    Refer to PROCEDURE - Step 37 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 35 [03/2024 - ]
  31. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  32. REMOVE EXHAUST MANIFOLD

    Refer to REMOVAL [11/2021 - 03/2022] , or refer to REMOVAL [03/2022 - ]

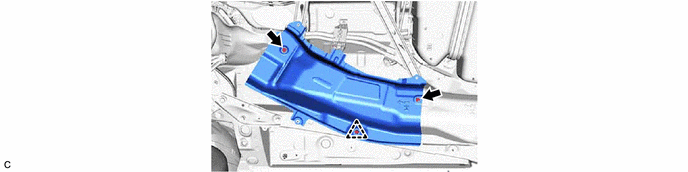

  33. REMOVE FRONT NO. 2 FLOOR HEAT INSULATOR
    1. GTY1078740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

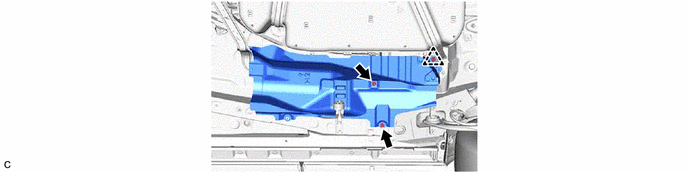

  34. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
    1. GTY1078743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE FUEL TANK SUB-ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  36. REMOVE NO. 1 FLOOR UNDER COVER

    Refer to PROCEDURE - Step 1 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 1 [03/2023 - ]

  37. REMOVE FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Insulate the disconnected connectors with insulating tape.
    1. GTY1077924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal - -
      1. Remove the 2 bolts and HV floor under wire from the rear traction motor with transaxle assembly.
        NOTE:
        • Do not damage the terminals, interlock connector or rear traction motor with transaxle assembly during disconnection.
        • Do not touch the waterproof seal or terminals of the connector.
        • Do not allow any foreign matter or water to enter the rear traction motor with transaxle assembly.
        • Although the connector may feel loose, this is not due to a malfunction.

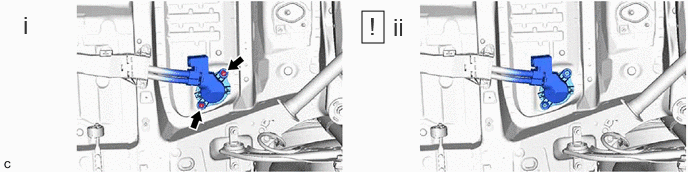

      2. Disengage the clamp.
      3. Remove the 2 bolts.
      4. Disengage the clamp.
    2. GTY1078327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts.
      2. Disengage the grommet and pull out the HV floor under wire from the floor panel hole.
    3. GTY1078690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

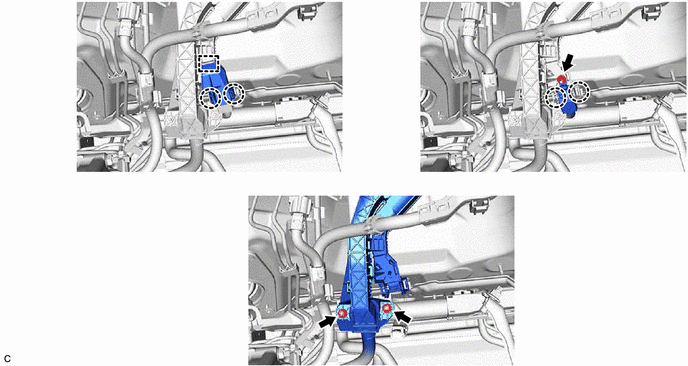

      1. Remove the 3 nuts, 4 bolts and 4 clamps.
        NOTE:

        If the clamp is removed forcibly, the stud bolt may be damaged.

    4. GTY1079054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
