WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during HV battery removal/installation are shown below.
WARNING:
- Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the repair information.
Refer to PRECAUTION [11/2021 - ]
- To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.
- Never perform work on fuel system components near any possible ignition sources.
- Vaporized fuel could ignite, resulting in a serious accident.
- Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
- Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
- The fuel tank sub-assembly is very heavy. Be sure to follow the procedure described in the repair information, or the fuel tank sub-assembly may fall off the engine lifter.
- To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
- To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
NOTE:
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lighting System (EXT) | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | Refer to INITIALIZATION [11/2021 - ] |
| Front Camera System | ||
| Adaptive High Beam System |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
E-latch System
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | Refer to INITIALIZATION [11/2021 - ] |
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [11/2021 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
COMPONENTS (REMOVAL)

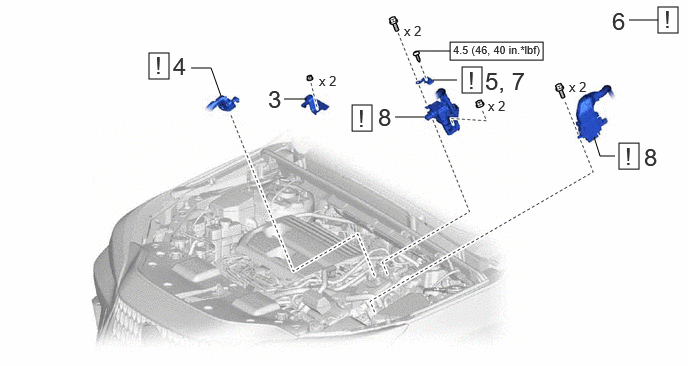

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | SERVICE PLUG GRIP | G3834 | - | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 3 | NO. 2 INVERTER PROTECTOR | G921F | - | - | - |
| 4 | ENGINE ROOM MAIN WIRE | 82111 | See step 4 | - | - |
| 5 | REMOVE CONNECTOR COVER ASSEMBLY | - | See step 5 | - | - |
| 6 | CHECK TERMINAL VOLTAGE | - | See step 6 | - | - |
| 7 | TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY | - | See step 7 | - | - |
| 8 | FLOOR UNDER WIRE | 821H1 | See step 8 | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

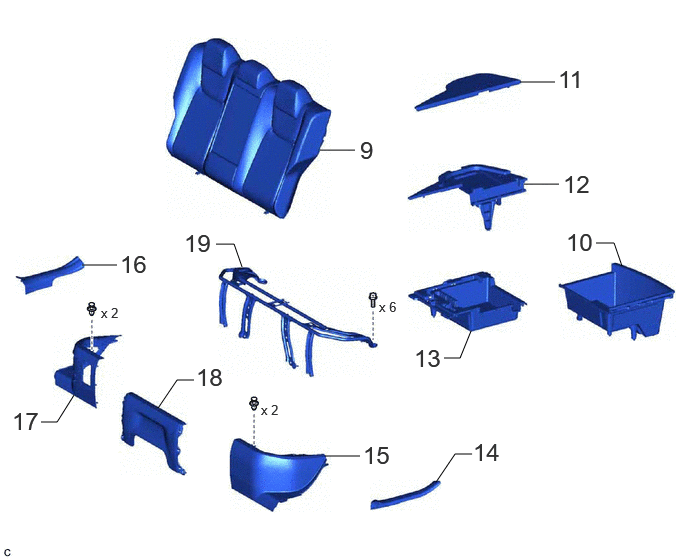

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 9 | REAR SEAT ASSEMBLY | - | - | - | - |
| 10 | REAR DECK FLOOR BOX | 64993 | - | - | - |
| 11 | REAR FLOOR BOARD REAR RH | 58417B | - | - | - |
| 12 | JUNCTION BLOCK SERVICE COVER | 58461H | - | - | - |
| 13 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 14 | REAR DOOR SCUFF PLATE LH | 67918A | - | - | - |
| 15 | NO. 3 BATTERY SERVICE COVER BOARD | 58467J | - | - | - |
| 16 | REAR DOOR SCUFF PLATE RH | 67917A | - | - | - |
| 17 | NO. 2 BATTERY SERVICE COVER BOARD | 58466K | - | - | - |
| 18 | BATTERY SERVICE COVER BOARD | 58464D | - | - | - |
| 19 | REAR SEAT CUSHION LEG SUB-ASSEMBLY | 71033 | - | - | - |

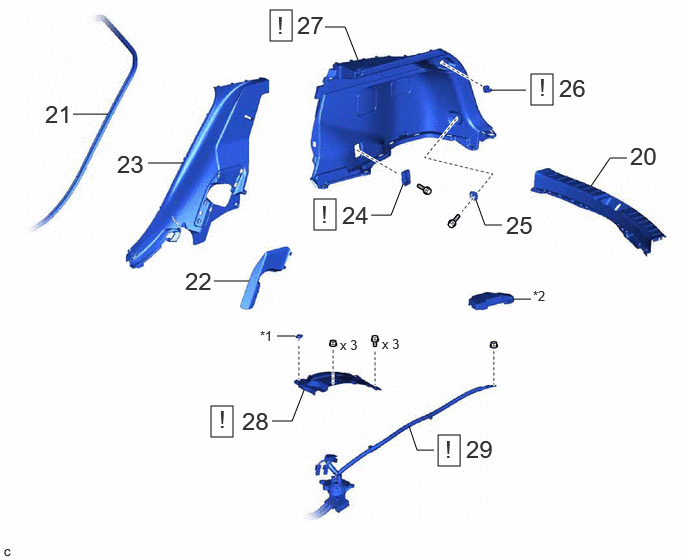

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 20 | REAR FLOOR FINISH PLATE | 58387B | - | - | - |
| 21 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | 62331A | - | - | - |
| 22 | NO. 1 SIDE TRIM BASE COVER RH | 62515B | - | - | - |
| 23 | REAR SEAT SIDE GARNISH RH | 62551F | - | - | - |
| 24 | ROPE HOOK ASSEMBLY | 66310H | See step 24 | - | - |
| 25 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 26 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | 64725F | See step 26 | - | - |
| 27 | DECK TRIM SIDE PANEL ASSEMBLY RH | 64730B | See step 27 | - | - |
| 28 | NO. 1 HV BATTERY COVER PANEL RH | G92N4A | See step 28 | - | - |
| 29 | FLOOR UNDER WIRE | 821H1 | See step 29 | - | - |
| *1 | BATTERY COVER LOCK STRIKER | *2 | NO. 3 RELAY BLOCK COVER |

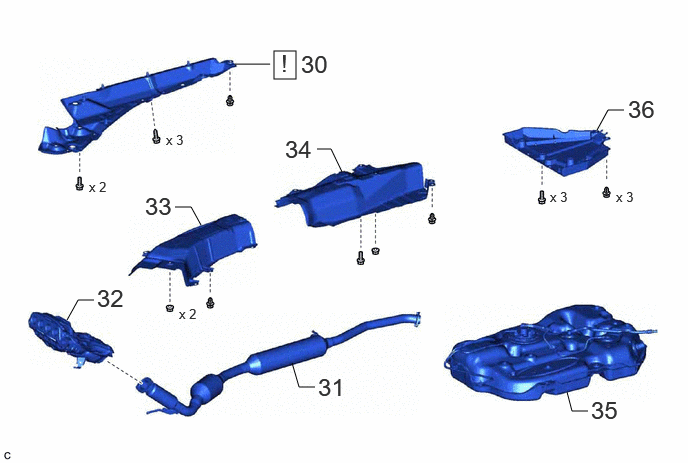

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 30 | FRONT FLOOR COVER RH | 58165C | See step 30 | - | - |
| 31 | FRONT EXHAUST PIPE ASSEMBLY | 17410 | - | - | - |
| 32 | EXHAUST MANIFOLD | 17141 | - | - | - |
| 33 | FRONT NO. 2 FLOOR HEAT INSULATOR | 58153E | - | - | - |
| 34 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | 58152A | - | - | - |
| 35 | FUEL TANK SUB-ASSEMBLY | 77100 | - | - | - |
| 36 | NO. 1 FLOOR UNDER COVER | 58398F | - | - | - |

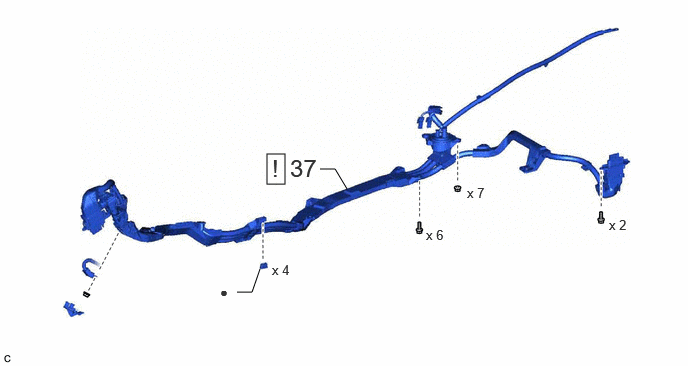

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 37 | FLOOR UNDER WIRE | 821H1 | See step 37 | - | - |
| • | Non-reusable part | - | - |
