Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT CUSHION ASSEMBLY
    Refer to PROCEDURE - Step 8
  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 9

  3. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 21

  4. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 23

  5. REMOVE REAR DOOR SCUFF PLATE RH
    1. Use the same procedure as for the LH side.
  6. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
    1. Use the same procedure as for the LH side.

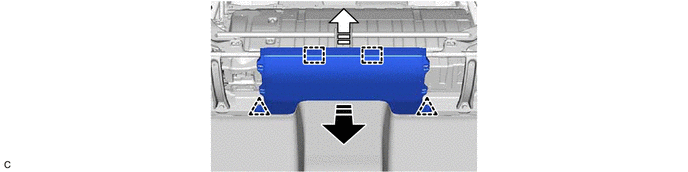

  7. REMOVE BATTERY SERVICE COVER BOARD
    1. GTY1066011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

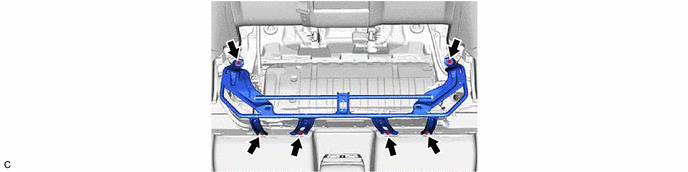

  8. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY
    1. GTY1078562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

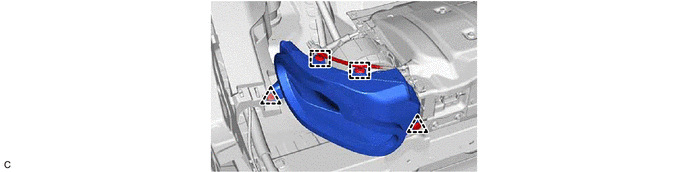

  9. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT
    1. GTY1066023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

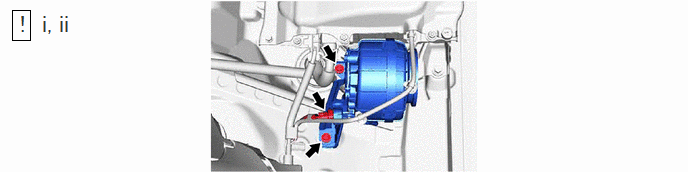

  10. REMOVE BATTERY COOLING BLOWER ASSEMBLY
    1. GTY1080267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the battery cooling blower assembly connector.
      2. Remove the 2 bolts and battery cooling blower assembly from the HV battery.
        NOTE:
        • Be sure not to touch the fan part of the battery cooling blower assembly.
        • Do not lift the battery cooling blower assembly using the wire harness.

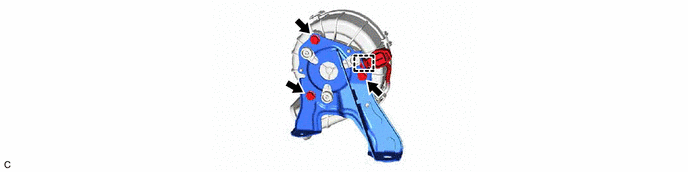

  11. REMOVE BATTERY COOLING BLOWER BRACKET
    1. GTY1066025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
