Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

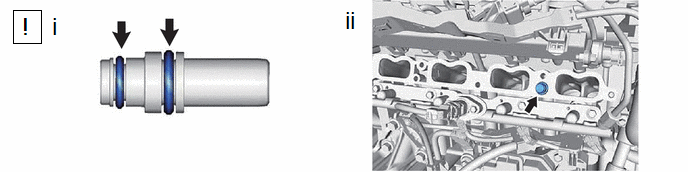

INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

Apply a light coat of engine oil to the O-ring.
NOTE:
When reusing the PCV valve (ventilation valve sub-assembly), inspect the O-ring.
Install the PCV valve (ventilation valve sub-assembly) to the cylinder head sub-assembly.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [11/2021 - ]
