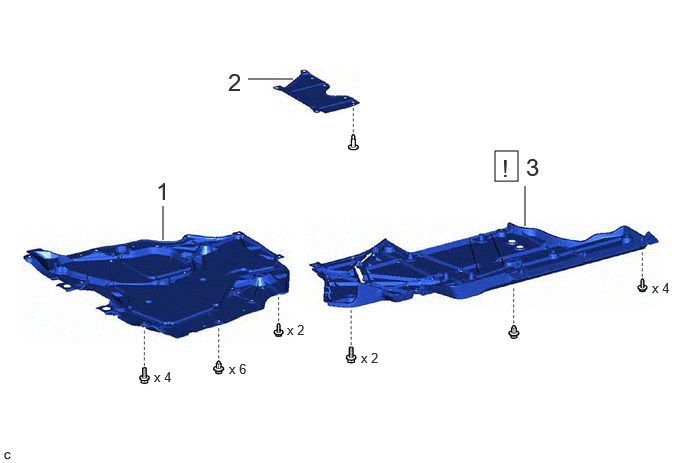

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 2 | ENGINE UNDER COVER HEAT INSULATOR | 51468B | - | - | - |
| 3 | FRONT FLOOR COVER LH | 58166A | See step 3 | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404A | See step 4 | - | - |
| 5 | FUEL TANK VENT HOSE SUB-ASSEMBLY | 77404 | See step 5 | - | - |
| 6 | FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK WITH BOLT VALVE ASSEMBLY) | 77070A | - | - | - |
