Removal [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [11/2021 - ]
- DISCONNECT NO. 3 WATER BY-PASS HOSE
- DISCONNECT NO. 4 WATER BY-PASS HOSE

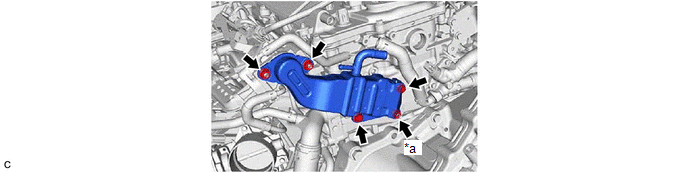

- REMOVE EGR COOLER ASSEMBLY
- REMOVE EGR VALVE GASKET
- REMOVE NO. 1 EGR COOLER GASKET
