Parts Location [11/2021 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

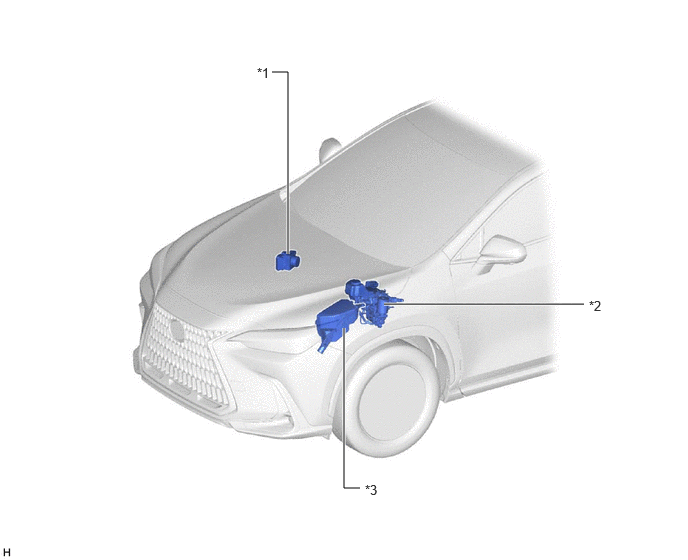

| *1 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
*2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - NO. 1 SKID CONTROL ECU |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 2 FUSE |
- | - |

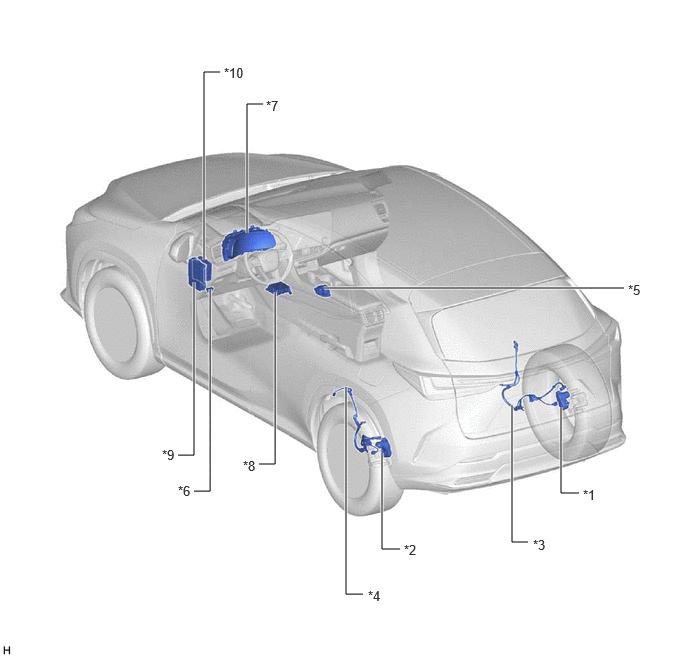

| *1 | PARKING BRAKE ACTUATOR ASSEMBLY RH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY LH |
| *3 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *5 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *6 | DLC3 |
| *7 | COMBINATION METER ASSEMBLY | *8 | AIRBAG SENSOR ASSEMBLY - ACCELERATION SENSOR |
| *9 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 4 FUSE |
*10 | HYBRID VEHICLE CONTROL ECU |
