Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 2 ECM BRACKET

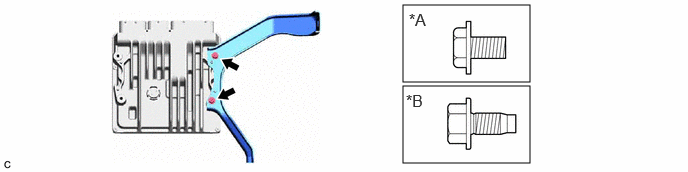

    1. GTY1081202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B

      Type A

      Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

      Type B

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  2. INSTALL NO. 1 ECM BRACKET
    1. GTY1081177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B

      Type A

      Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

      Type B

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  3. INSTALL ECM
    1. GTY1077429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the ECM with the 2 bolts and nut.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

        NOTE:

        If the ECM has been struck or dropped, replace it.

      2. Connect the 3 ECM connectors and rotate the 3 levers to lock them.
        NOTE:
        • When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
        • Be sure to securely connect the ECM connectors.
  4. INSTALL AIR CLEANER ASSEMBLY

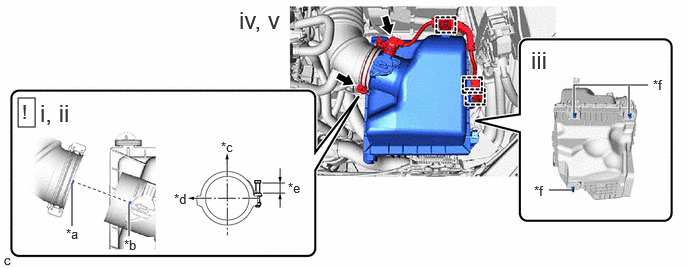

    1. GTY1077107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout *b Protrusion
      *c Top *d Rear of Vehicle
      *e 13 to 19 mm (0.512 to 0.748 in.) *f Pin
      1. Install the air cleaner assembly to the air cleaner hose.
        NOTE:

        Align the cutout of the air cleaner hose with the protrusion of the air cleaner assembly.

      2. Tighten the hose clamp in the position shown in the illustration.
      3. Engage the 3 pins to install the air cleaner assembly.
      4. Engage the 3 wire harness clamps.
      5. Connect the mass air flow meter sub-assembly connector.
  5. INSTALL INLET AIR CLEANER ASSEMBLY
    1. Fig 1: Inlet Air Cleaner Assembly Bolts Tightening Sequence
      GTY1077327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the inlet air cleaner assembly with the 2 bolts in the order shown in the illustration.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  6. INSTALL RADIATOR UPPER AIR GUIDE PLATE
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 5

  8. VEHICLE IDENTIFICATION NUMBER (VIN) REGISTRATION

    Refer to PROCEDURE - Step 1

  9. ECU CONFIGURATION

    Refer to ECU CONFIGURATION [11/2021 - ]

  10. UPDATE ECU SECURITY KEY

    Refer to UPDATE ECU SECURITY KEY [11/2021 - ]

  11. PERFORM INITIALIZATION

    Refer to WORK PROCEDURE [11/2021 - 03/2023] , or refer to WORK PROCEDURE [03/2023 - 03/2024] , or refer to WORK PROCEDURE [03/2024 - ]

  12. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [11/2021 - ]
