COMPONENTS (INSTALLATION)
Fig 1: Active Control Engine Mount (For Front Side) Installation Components With Torque Specifications (1 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT ENGINE MOUNTING INSULATOR | 12361 | - | - | - |
| 2 | FRONT ENGINE MOUNTING BRACKET | 12311A | See step 2 | - | - |
| 3 | VACUUM HOSE | - | - | - | - |
| 4 | WIRE HARNESS | - | - | - | - |
| 5 | WATER BY-PASS HOSE ASSEMBLY | 16260 | - | - | - |
| 6 | NO. 1 RADIATOR HOSE | 16571C | - | - | - |
| 7 | INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY | - | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

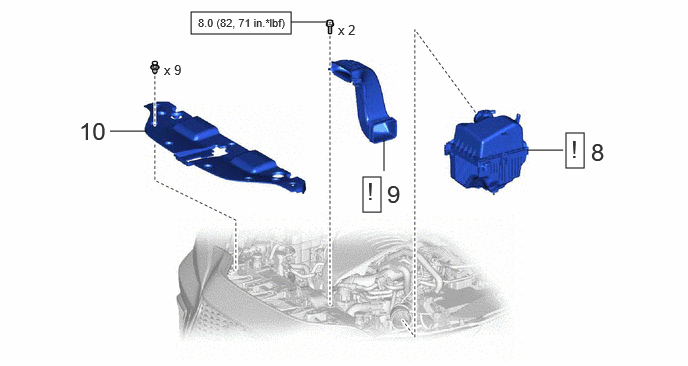

Fig 2: Active Control Engine Mount (For Front Side) Installation Components With Torque Specifications (2 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 8 | AIR CLEANER ASSEMBLY | 17700 | See step 8 | - | - |
| 9 | INLET AIR CLEANER ASSEMBLY | 17750A | See step 9 | - | - |
| 10 | RADIATOR UPPER AIR GUIDE PLATE | 16681A | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

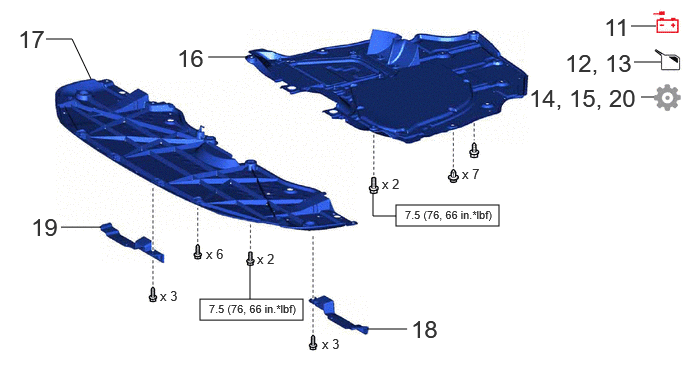

Fig 3: Active Control Engine Mount (For Front Side) Installation Components With Torque Specifications (3 Of 3)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 11 | NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 12 | ADD COOLANT (for Intercooler) | - | - | See step 12 | - |
| 13 | ADD ENGINE COOLANT | - | - | See step 13 | - |
| 14 | INSPECT FOR COOLANT LEAK (for Intercooler) | - | - | - | See step 14 |
| 15 | INSPECT FOR COOLANT LEAK | - | - | - | See step 15 |
| 16 | NO. 2 ENGINE UNDER COVER ASSEMBLY | 51420 | - | - | - |
| 17 | NO. 1 ENGINE UNDER COVER | 51441 | - | - | - |
| 18 | FRONT FENDER FRONT SPLASH SHIELD LH | 53896B | - | - | - |
| 19 | FRONT FENDER FRONT SPLASH SHIELD RH | 53895B | - | - | - |
| 20 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | See step 20 |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
