Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

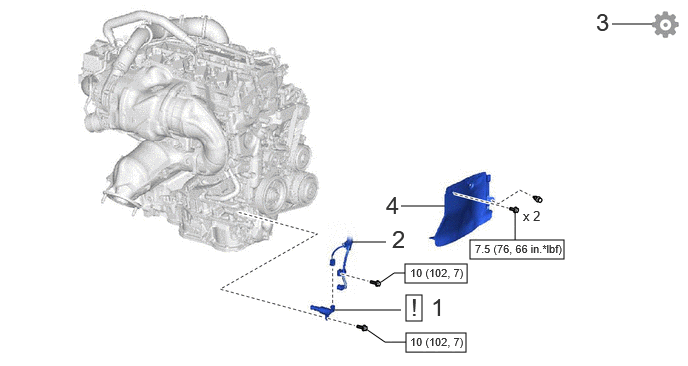

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | OIL PRESSURE CONTROL VALVE ASSEMBLY | 15250 | See step 1 | - | - |
| 2 | ENGINE WIRE | 82121 | - | - | - |
| 3 | INSPECT FOR ENGINE OIL LEAK | - | - | - | See step 3 |
| 4 | FRONT FENDER APRON SEAL RH | 53736 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
