COMPONENTS (INSTALLATION)

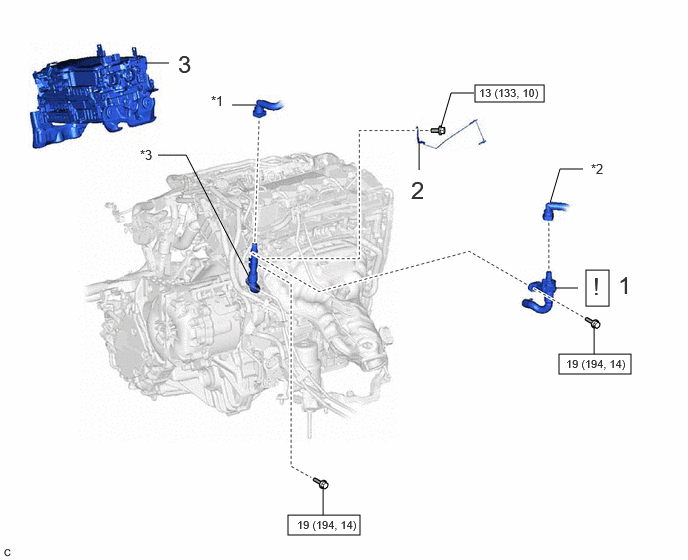

Fig 1: Flow Shutting Valve Installation Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)	16260	See step 1	-	-
2	WIRING HARNESS CLAMP BRACKET	82715	-	-	-
3	INVERTER WITH CONVERTER ASSEMBLY	G92A0	-	-	-

*1	OUTLET HEATER WATER HOSE B	*2	INLET HEATER WATER HOSE B
*3	NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

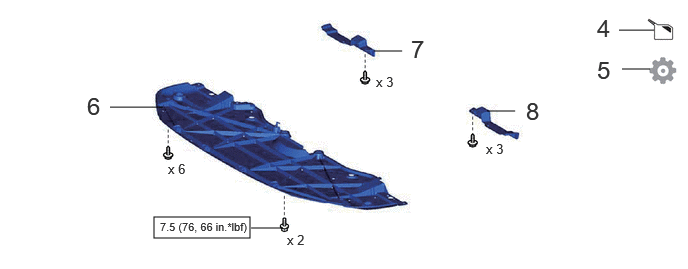

Fig 2: Flow Shutting Valve Installation Components With Torque Specifications (2 Of 2)

Callout - Procedure		Part Name Code
4	ADD ENGINE COOLANT (for Engine)	-	-	See step 4	-
5	INSPECT FOR COOLANT LEAK (for Engine)	-	-	-	See step 5
6	NO. 1 ENGINE UNDER COVER	51441	-	-	-
7	FRONT FENDER FRONT SPLASH SHIELD RH	53895B	-	-	-
8	FRONT FENDER FRONT SPLASH SHIELD LH	53896B	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque
